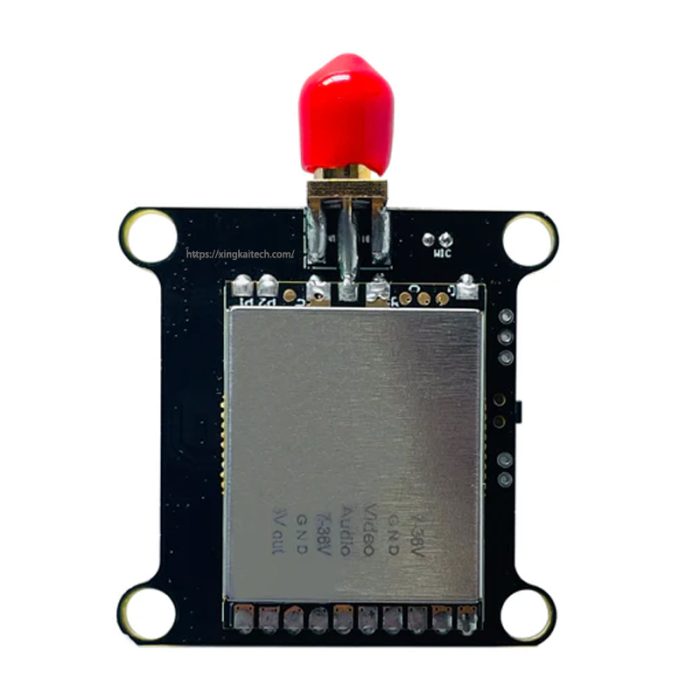

1.2GHz 1.6W VTX Long-Range FPV Video Transmitter for Drones & UAVs

Are you building a dedicated endurance aircraft and need a video link that hits the perfect balance between extreme distance and thermal efficiency? The standard 5.8GHz frequency band is great for close-range tracks, but it falls short when you face heavy RF noise or solid obstacles.

Enter the 1.2GHz 1.6W VTX Long-Range FPV Video Transmitter. Pumping out a highly optimized 1600mW of raw output power, this premium video transmitter is engineered to deliver crisp, reliable analog video feeds across massive distances without overheating your setup or draining your flight pack.

Adding this high-tier drone part to your build ensures your aircraft maintains a rock-solid connection even when pushing deep into untested horizons.

The Power of the 1.2GHz Frequency Band

In long-range FPV, wave penetration is everything. Because 1.2GHz wavelengths are significantly longer than standard frequencies, they excel at diffraction. They can physically bend around obstacles, slice through dense trees, and bypass buildings that would immediately trigger a total video blackout on a 5.8GHz rig.

With a strong 1.6W output profile, this specific video transmitter gives you the exact punch needed to execute medium-to-long range flights with absolute peace of mind. Since the 1.2GHz spectrum sits well away from common 2.4GHz Wi-Fi networks, you can say goodbye to channel crowding and fly in a clean RF environment.

Technical Specifications

Key Performance Benefits

• Rugged Heatsink Design: Encased in a lightweight, thermal-efficient aluminum protective shell that rapidly dissipates heat, preventing thermal throttling during extended flights.

• Smart Audio & OSD Control: Fully supports modern configuration protocols, allowing you to seamlessly change video bands, channels, and power levels directly inside your FPV goggles via your radio sticks.

• Onboard Power Filtering: Features wide voltage input filtering that handles dirty power spikes straight from your main battery, cleaning out motor noise and ESC voltage ripples.

Critical Setup Best Practices

• Always Mount Your Antenna First: CRITICAL: Never supply power to your video transmitter without an antenna firmly screwed onto the SMA port. Operating without a load causes immediate, irreversible damage to the internal RF amplifier circuitry.

• Low-Pass Filtering: Because 1.2GHz transmitters emit secondary harmonics near the 1.5GHz GPS band, installing a 1.2GHz notch/low-pass filter ensures your navigation module retains a rapid 3D GPS lock.

• Ensure Adequate Airflow: Keep the VTX in Pit Mode or a low-power setting during bench configuration, and only switch to a full 1.6W right before your UAV takes off to avoid overheating.

Add the 1.2GHz 1.6W Long-Range VTX to your cart today, complete your hardware arsenal, and explore the skies without boundaries!
