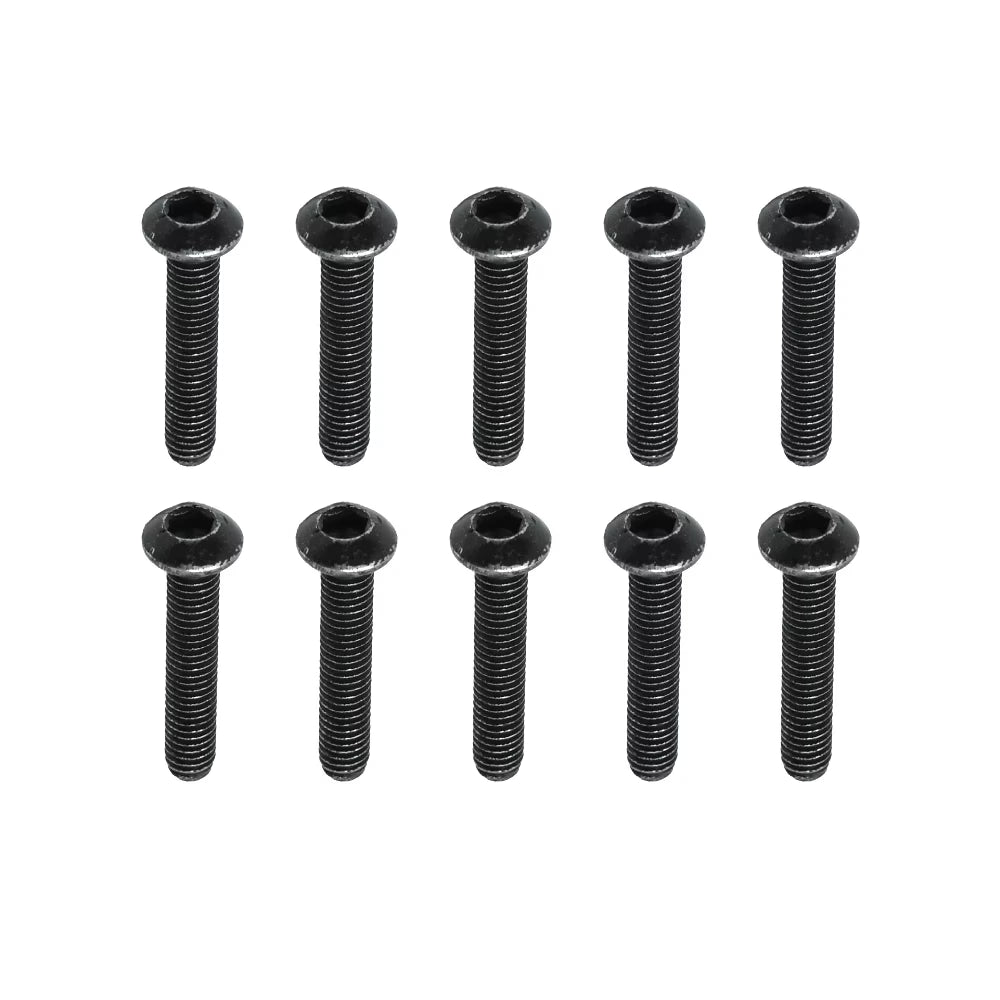

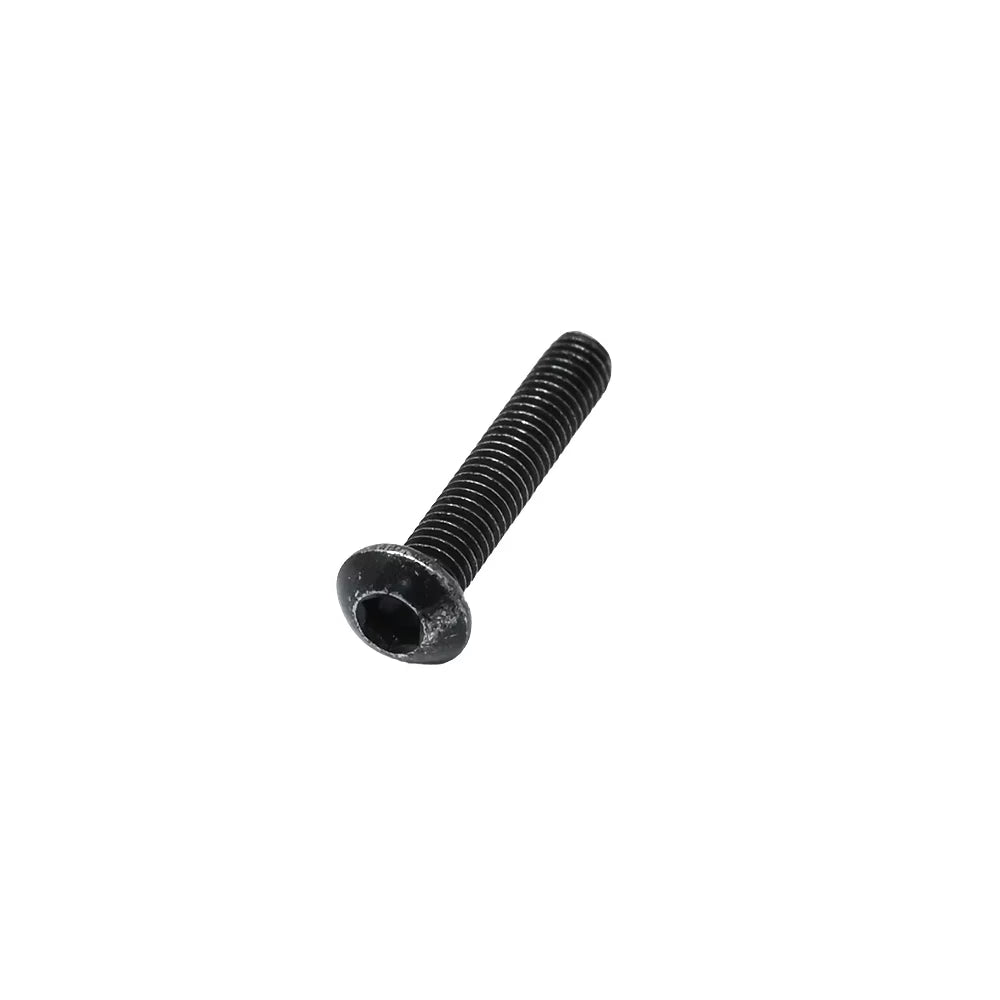

M3 x 16mm Button Head Screw – High Strength Steel Socket Head Fastener for Drone, Robotics & Electronics

When engineering high-performance FPV racing quadcopters, precision automated robotic chassis, or tightly packaged micro-electronic assemblies, structural fastening precision dictates your system's field reliability. Modern multirotor aircraft and high-torque automation rigs subject their primary frame seams to rigorous high-frequency oscillations from brushless motors and sudden multi-G directional changes. Under these intense kinetic stresses, inferior low-grade hardware components will slowly stretch, strip, or shift under tension, introducing severe physical vibrations into your frame, inducing sensor noise, or causing a total structural collapse mid-operation.

The perfect low-profile, short-to-mid reach clamping solution is the M3 x 16mm Button Head Screw – High Strength Steel Socket Head Fastener for Drone, Robotics & Electronics. Forged from premium structural-grade steel, this precision metric bolt ensures an iron-clad mechanical lock across low-clearance frameworks while maintaining clean, streamlined, and low-drag external surfaces. Whether you are securing a single high-current power module, mounting lightweight camera tethers, fastening carbon fiber body shells, or structural corner brackets, this premium industrial fastener supplies the optimal thread tracking and tensile toughness required for error-free operations.

The Aerodynamic & Mechanical Design Advantages of 16mm Button Head Geometry

In compact aerospace builds and agile multirotor engineering, minimizing excess hardware protrusion is essential. Standard socket cap bolts stand too tall off the chassis bed, acting as aggressive catch points that can shear thin battery leads, fray telemetry wires, or tear expensive soft-pouch LiPo battery straps during hard landings or fast maintenance procedures.

The M3 x 16mm button head steel screw completely isolates your components from these hazards:

• Low-Drag Dome Shape: Sits flush against the chassis surface, minimizing snags on battery wires and landing paths while preserving clean airframe aerodynamics.

• Uniform Clamping Footprint: Spreads crushing force profiles evenly over a broader footprint, protecting fragile high-modulus woven carbon plates or custom 3D-printed filaments (TPU/PETG) from micro-fracturing under high torque.

• Optimized 16mm Low-Clearance Depth: Provides the perfect depth to pass completely through standard 3mm to 5mm thick carbon arms or base chassis plates and bite fully into standard hardware threads, maximizing joint safety.

Technical Specifications

Eliminating Gyro Vibration Noise for High-End Drone Processing

Modern FPV flight stacks and automated navigation cores process flight data at incredibly high frequencies. Sensitive flight computers require a completely rigid, unyielding frame cage to isolate their onboard gyro chips from mechanical static.

If your core structure is held together by loose or weak hardware, raw motor harmonics will bypass your soft silicone damping rings. This feeds massive background data noise straight into your PID tuning loops, resulting in hot motors, erratic throttle responses, or unexpected mid-air desyncs. Fastening your sub-frames and standalone electronics modules with our premium M3 16mm fasteners eliminates structural flex entirely. This solid mechanical anchoring guarantees that downstream voltage devices remain structurally undisturbed, allowing your video transmitter arrays to maintain a clean, line-free FPV video signal back to your ground terminal station.

Frequently Asked Questions (FAQs)

Is this M3 screw compatible with standard 5-inch racing and freestyle drones?

Yes! The M3 thread diameter is the absolute global standard for 3-inch to 7-inch FPV drone assemblies. This 16mm length is highly prized by custom builders who want to mount standalone electronic components or top canopy plates with a clean, low-profile clearance.

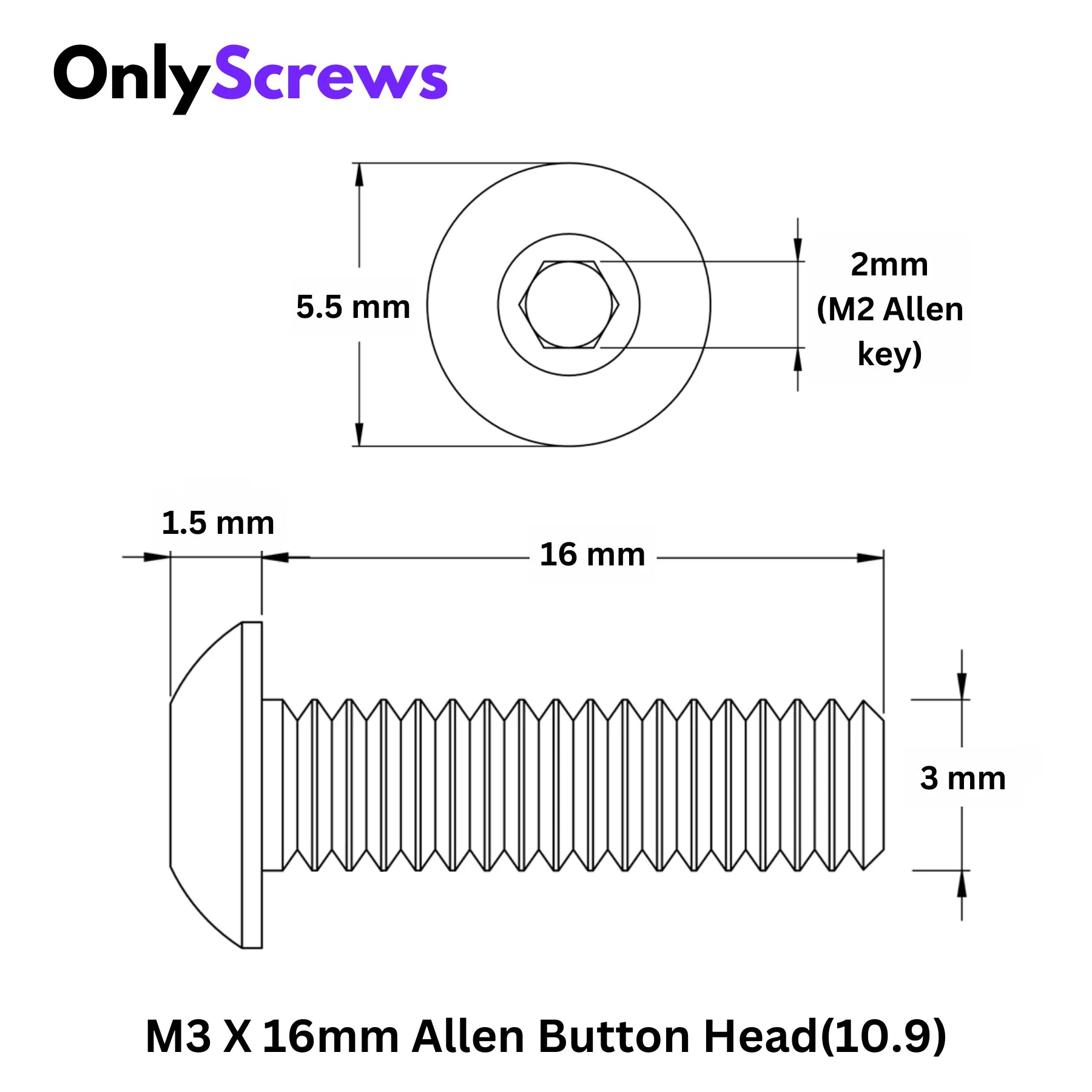

How is the 16mm length measured on button head screws?

In metric button head engineering standards, the 16mm functional length is measured starting exactly from the flat underside of the rounded dome head down to the very tip of the threaded shaft. The thickness of the dome head itself is never included in the length calculation.

Secure your technical assemblies with aerospace-grade rigidity. Add this premium M3 x 16mm steel button head screw kit to your cart today!
