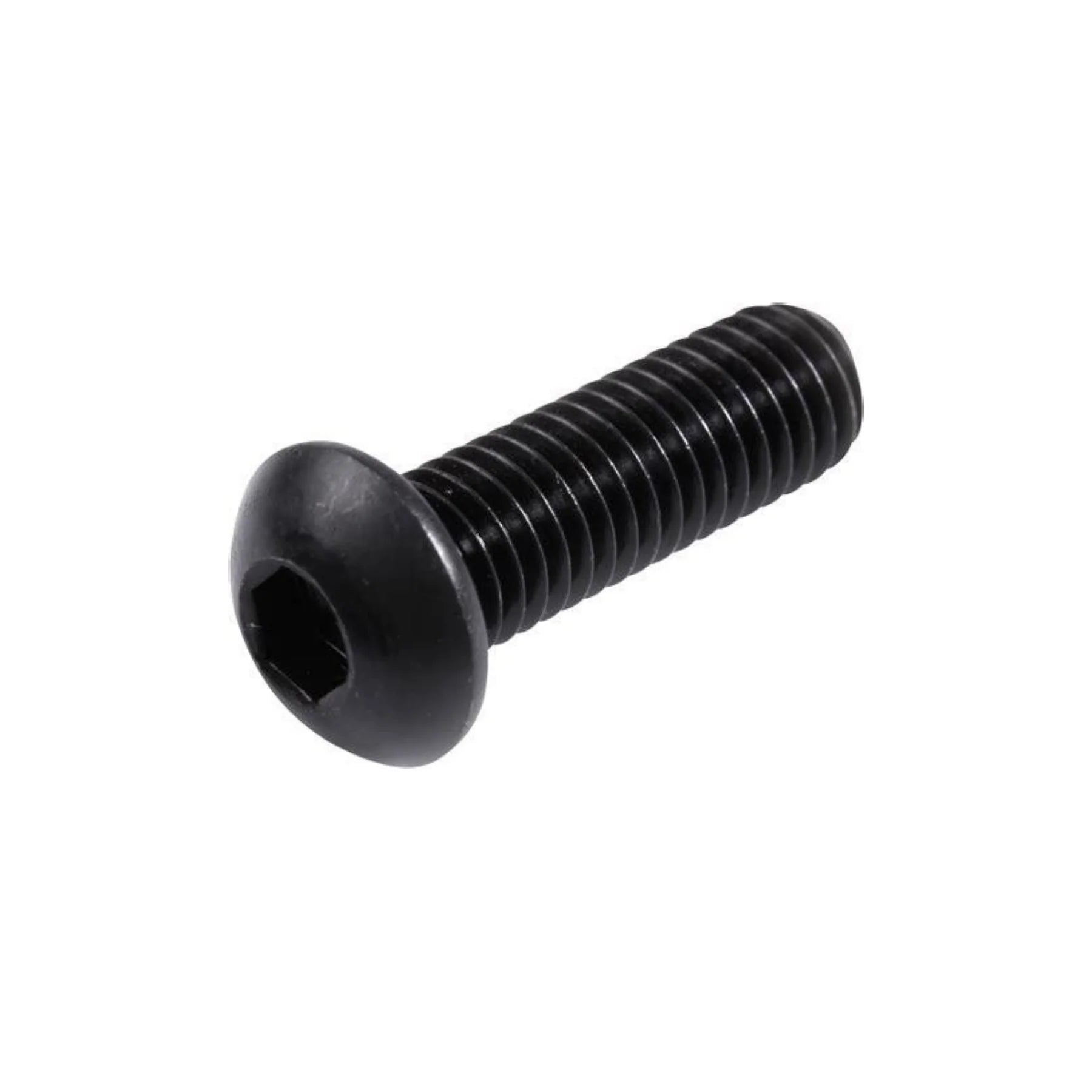

Button Head M4×16MM Screw – Drone Fastening Bolt for FPV & UAV

When engineering long-range UAVs, enterprise surveying quadcopters, or professional heavy-lift cinema rigs, your structural fasteners determine your airframe’s lifespan. Drones operate in demanding aerodynamic conditions. High-torque brushless motors pass intense low-frequency vibrations throughout carbon fiber chassis. In this high-stress flight environment, loose or weak hardware leads to structural flexing, tracking drift, and catastrophic mid-air mechanical failures.

The industry-standard locking solution for rigid structural joints is the Button Head M4×16MM Screw. Engineered with a low-profile dome head and precision metric threads, this high-tensile structural drone fastening bolt delivers massive clamping power without adding unnecessary aerodynamic drag or weighing down your FPV quad.

Why the M4×16MM Geometry Matters for UAVs

Choosing the wrong screw head creates severe design bottlenecks. Standard socket cap screws protrude too far, snagging easily on battery straps, external wiring looms, or field elements during hard landings.

The M4×16MM Drone Fastening Bolt eliminates these design flaws:

• Low-Drag Dome Shape: Sits flush against the chassis surface, minimizing snags on battery wires and landing paths.

• Uniform Pressure Distribution: The wide button head footprint prevents the screw from micro-fracturing or crushing premium woven carbon fiber plates under high torque.

• Optimized 16mm Length: Provides the exact depth needed to cleanly pass through thick multi-layered frame plates, arm mounts, and heavy-duty landing gears to bite deeply into standoffs or locking nuts.

Technical Specifications

Eliminating Flight Controller Gyro Noise

Large multirotor drones carry sensitive processing cores that handle complex navigation logic. Heavy component configurations depend on a completely rigid frame to interpret sensor data correctly. If structural frame screws are loose or flexing, raw motor vibrations bypass your isolation grommets. This causes massive data noise on your gyro sensor chip, leading to sudden mid-air drops or unexplainable flight twitches.

Securing your core structural joints with this premium M4 drone part builds an iron-clad cage around your core systems. The unyielding clamping pressure locks your frame plates together as a single solid unit, ensuring your flight controller isolates background noise and your high-power video equipment outputs a crisp FPV feed.

Frequently Asked Questions (FAQs)

Will this M4 screw fit standard 5-inch FPV racing drone kits?

No. Standard 5-inch FPV mini-quads are built around lighter, smaller M3 hardware sets. This heavier M4×16mm size is custom-engineered for larger 7-inch, 10-inch, industrial surveying, or heavy-lift commercial UAV platforms that demand superior cross-sectional shear strength.

How do you accurately measure the 16mm length on a button head bolt?

In metric button head configurations, the 16mm functional length is measured starting exactly from the flat underside of the rounded dome head down to the very tip of the threaded shaft. The thickness of the dome head itself is never included.

Fortify your drone chassis with absolute precision. Add this premium M4×16MM button head screw kit to your cart today!
