GEP-CL35 Frame

CineLog35 3.5-Inch Cinematic FPV Frame – Lightweight & Durable Design

The CineLog35 Frame, developed by GEPRC, is a high-performance 3.5-inch cinematic FPV frame designed specifically for mounting GoPro-style action cameras. Built as an upgraded evolution of the CineLog30, the CL35 offers stronger structure, improved compatibility, and smoother flight performance for professional cinematic flying.

With an integrated propeller guard, reinforced frame structure, and upgraded damping system, the CineLog35 delivers stable, low-vibration footage while maintaining a lightweight body and responsive flight characteristics.

Key Features of CineLog35 Frame

• Upgraded Design Based on CL30: Improved structure, stronger protection, and enhanced mounting compatibility.

• Integrated Propeller Guard: The one-piece guard design increases durability and frame rigidity while reducing flight noise.

• Enhanced Power System Support: 12 mm × 12 mm motor mounting allows installation of 15/18/20 series motors paired with 3.5-inch propellers for stronger thrust and smoother control.

• Improved Damping Rings: Upgraded vibration isolation ensures clearer and more stable video footage.

• Wide Camera Compatibility:

  • Supports full-size GoPro HERO 8/9/10 via 3D-printed mounts

  • Supports naked GoPro HERO 8, Insta360 GO 2, and Caddx Peanut

• AIO Flight Controller Support: Compatible with mainstream AIO FCs (25.5 × 25.5 mm mounting holes).

• HD VTX Ready: 20 × 20 mm VTX mounting supports Vista HD digital transmission.

• Low-Noise Design: Side ventilation holes in the propeller guard significantly reduce airflow noise during flight.

• Independent Receiver Compartment: A dedicated RX bay allows fast and convenient receiver installation.

Specifications

• Model: GEP-CL35

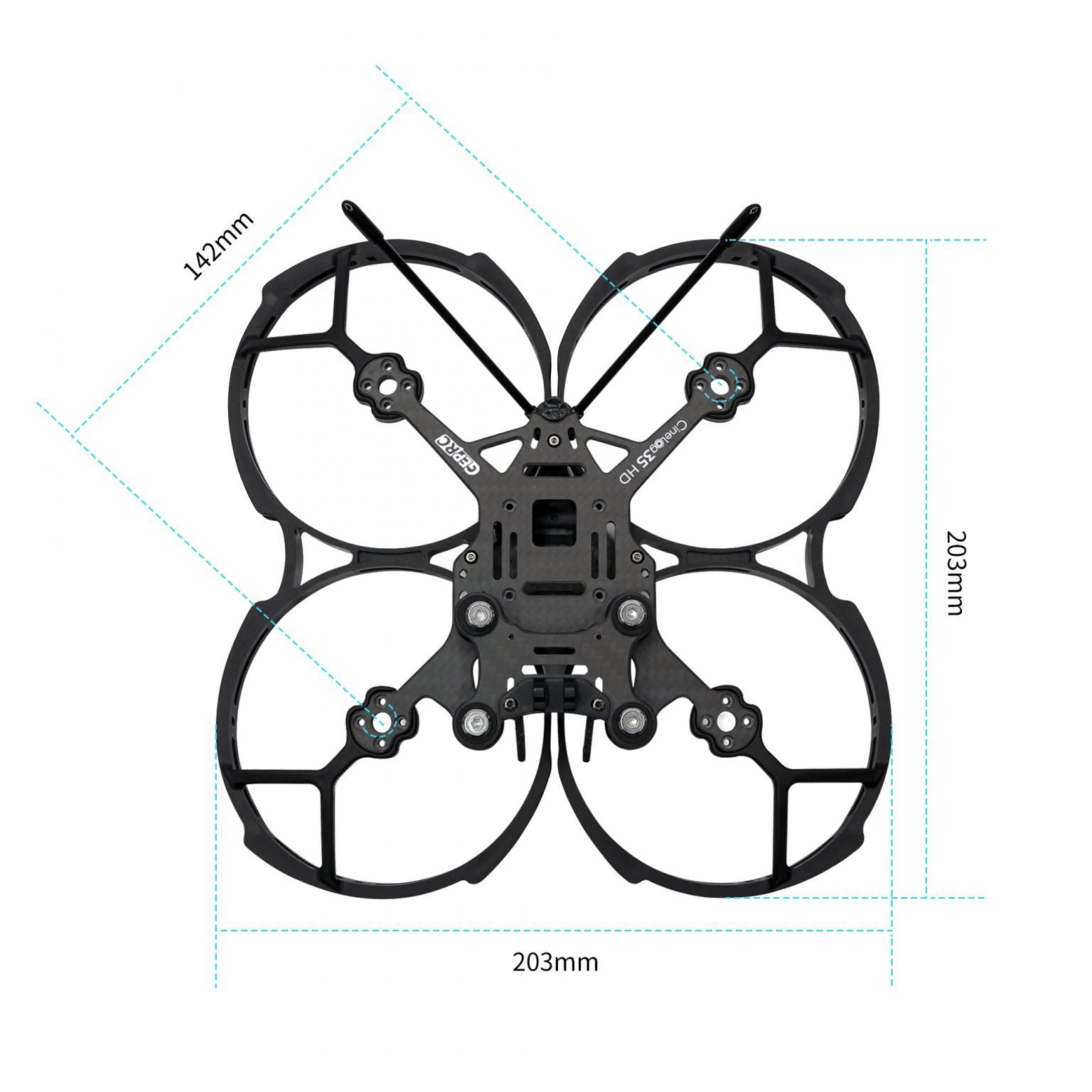

• Motor-to-Motor Distance: 142 mm

• Top Plate Thickness: 2.5 mm

• Bottom Plate Thickness: 2.0 mm

• Arm Plate Thickness: 3.5 mm

• FC Mounting Hole: 25.5 × 25.5 mm

• VTX Mounting Hole: 20 × 20 mm

• Motor Mounting Hole: 12 × 12 mm

• Camera Installation Space: 14–19 mm

• Propeller Guard Inner Diameter: 95 mm

• Recommended Propeller Size: 3.5 inch

• Dimensions: 203 × 203 × 42 mm (including propeller guard)

• Weight: 130.7 g
  (Includes propeller guard, GP camera mount, and 3D-printed parts)

Package Includes

• 1 × 2.5mm Top Plate

• 1 × 3.5mm Arm Plate

• 1 × 2.0mm Bottom Plate

• 2 × Integrated Propeller Guards

• 1 × Power Cable Set

• 1 × Screw Set

• 1 × Screwdriver Set

• 1 × 3D-Printed Mounting Set

• 1 × Additional Accessories
