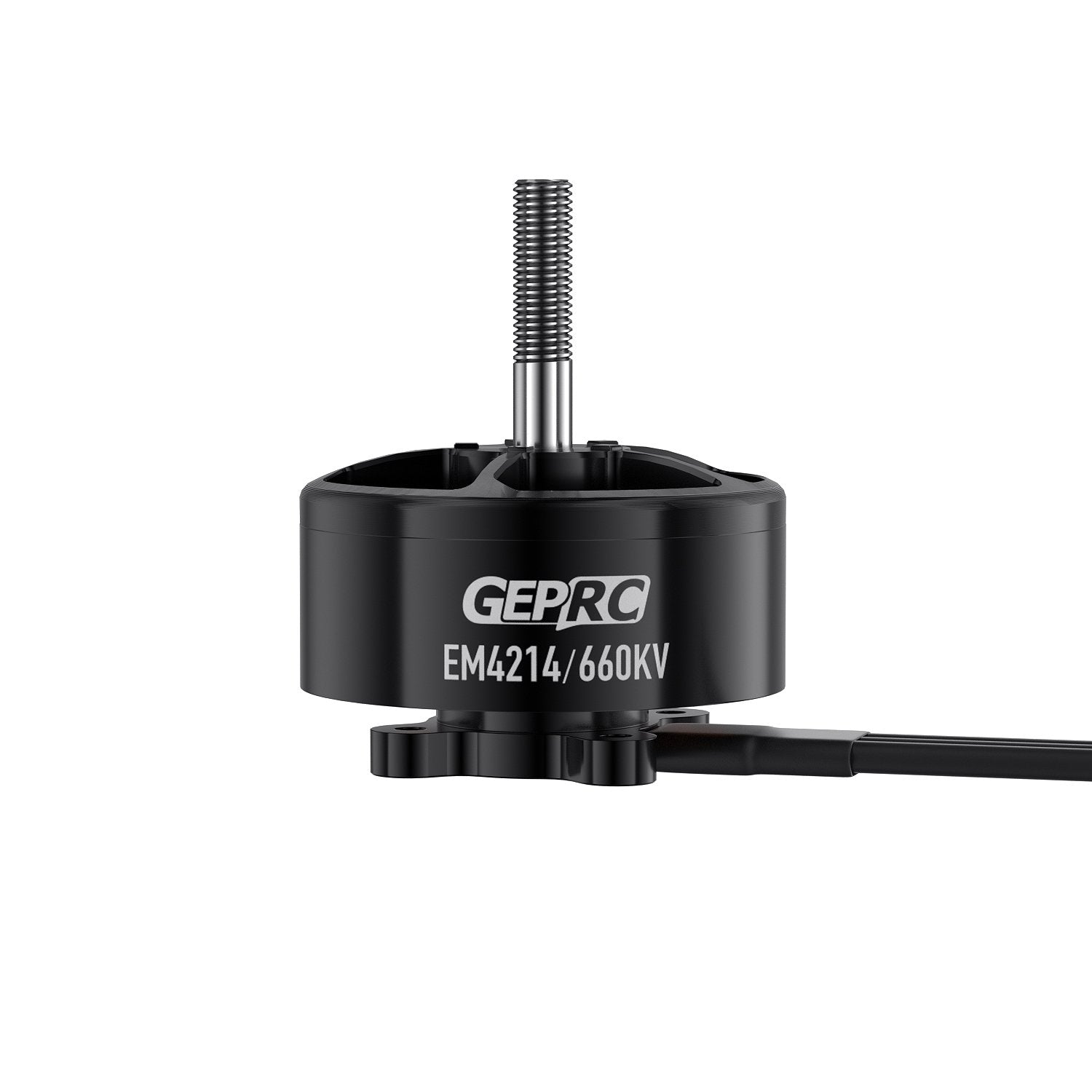

GEPRC EM4214 660KV Motor (Without printing on Motor)

Rs. 4,999.00
Rs. 4,999.00
Sale Sold out
Shipping calculated at checkout.
Only 9 units left

Feature

  1. New EM series motors designed for long-range FPV
  2.  High-strength M6 steel shaft
  3.  High torque magnetic circuit design

Specifications

  • Model: EM4214 660KV Motor

  • KV: 660KV

  • Max Watt: 2120W

  • Peak Current: 90A

  • Interphase Resistance: 25mΩ

  • Propeller: 12-14inch Propeller

  • Magnet: N52H

  • Bearing Type: NMB

  • Configuration: 12N14P

  • Dimension: φ49mmx32.5mm

  • Shaft Diameter: φ6mm

  • Shaft Protruding Length: 25.5mm

  • Mounting holes: 30mmx30mm

  • Lead: 800mm/14AWG

  • Compatible ESC: 80A-100A

  • Input Volts: 25.2V(6S LiPo)

  • Winding: Single-strand copper winding

  • Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)

  • Weight: 246g(included wire)

  • Compatible Models: 12-14 inch long-range FPV

Includes

1 x EM4214 motor

4 x M4*12 round head screws

1 x M6 anti-slip nut
