Mark4 V2 7-Inch Long-Range FPV Drone Frame

Rs. 2,999.00
Rs. 2,999.00
Sale Sold out
Shipping calculated at checkout.
Re-stocking soon

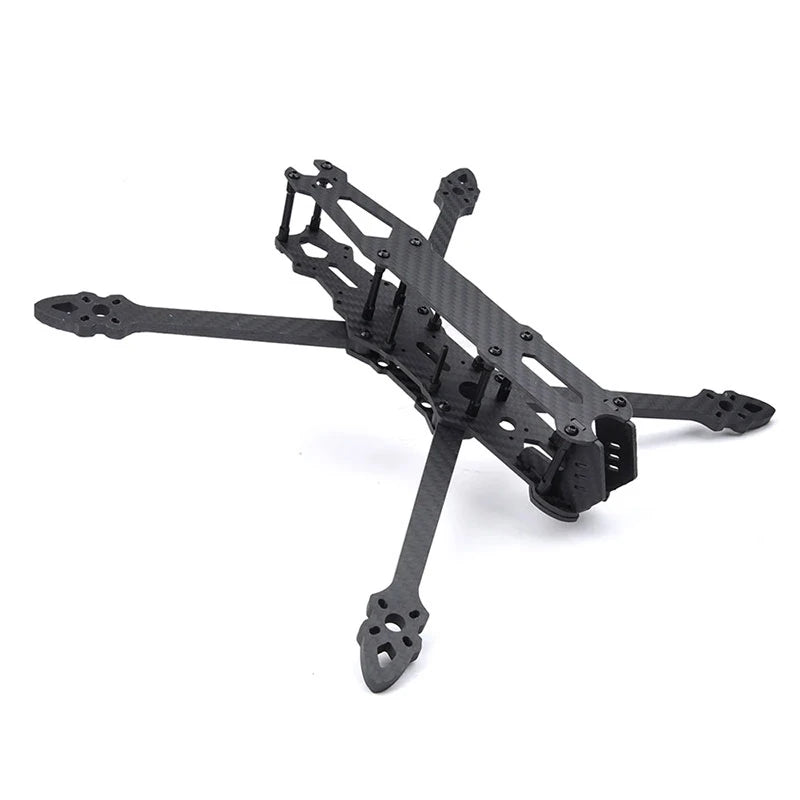

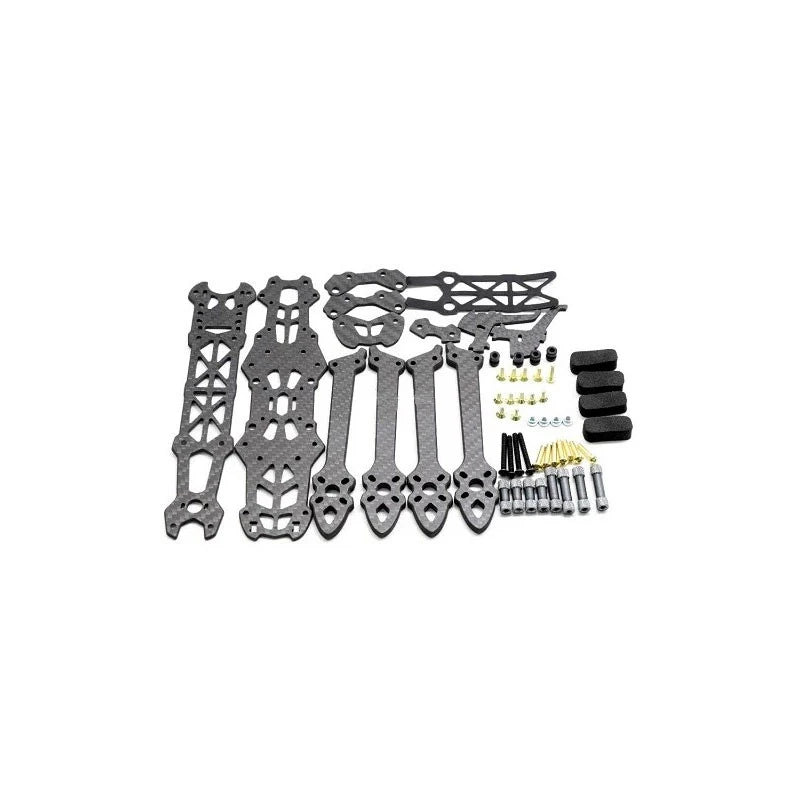

Mark4 V2 7-Inch Long-Range FPV Drone Frame

Are you experiencing intense video jello, mid-flight oscillations, or frame cracking when pushing your long-range quad past the horizon? Standard flexible multirotor frames vibrate violently under heavy 7-inch props, leading to erratic flight characteristics, overheated motors, and critical mechanical fatigue. If you are an FPV cinematic pilot, mountain surfer, or a commercial UAV builder looking to carry heavy LiPo batteries and action cameras over miles of rough terrain, the GEPRC Mark4 V2 7-Inch Frame is custom-engineered to provide extreme structural stiffness and crash-proof reliability.
Why Choose the Mark4 V2 7-Inch Frame? (Features vs. Benefits)
  • Robust 5mm Carbon Fiber Arms: High-load 7-inch propellers generate immense torsional strain that can twist thin arms out of alignment. Equipped with heavy-duty 5mm carbon fiber arms, this frame maintains absolute rigidity during high-speed dives, completely eliminating video jello and motor oscillations.
  • H-Shape Aerodynamic Balance: Standard squashed-X layouts can push props directly into your HD video feed or struggle with battery balance. The optimized stretched-H configuration moves the propellers clear of your lens view while providing a long top deck to accommodate oversized, high-capacity long-range batteries.
  • True 3K Full Carbon Sheet Composition: Cheap composite sheets with hidden fiberglass layers delaminate and snap instantly during concrete impacts. This chassis is carved entirely out of premium 3K full carbon fiber plates, offering industry-leading crash protection while keeping the airframe incredibly light.
  • Multi-Hole Modular Component Mounting: Trying to cram high-power VTX units, receivers, and capacitors into a single stack leads to messy wiring and thermal throttling. The interior layout features standardized 20x20mm and 30.5x30.5mm mounting slots in both the center and rear sections, letting you isolate your flight controller from noisy video transmitters.
Parameter Specification
Model Variant GEPRC Mark4 V2 7-Inch Edition
Wheelbase (Diagonal) 295 mm
Arm Plate Thickness 5.0 mm (Heavy-Duty Isolated Design)
Top & Bottom Plates 2.0 mm (High-Density Stiffness)
Side Plates / Camera Mount 2.5 mm
FC Stack Mounting Dual Arrays: 30.5mm × 30.5mm & 20mm × 20mm
VTX Mount Slots 20mm × 20mm & 30.5mm × 30.5mm
Motor Mounting Pattern 16mm × 16mm & 19mm × 19mm
Weight ~121 grams (Including hardware standoffs)

This high-end 7-inch structural airframe is purpose-built to conquer extreme long-distance operations:
  • Cinematic Mountain Surfing: The rigid baseline lets you carry a full-sized GoPro camera or heavy action rig smoothly through strong high-altitude winds.
  • Extreme Long-Range Exploration: Pair it with low-KV motors and a massive 4S/6S Li-Ion battery pack to achieve stable 20+ minute cruising missions.
  • Autonomous Surveying & Searching: Mount sub-GHz telemetry modules to run pre-programmed ArduPilot waypoint paths across expansive terrain.
  • Heavy Freestyle & Proximity Flying: Designed to survive high-impact field drops and concrete scrapes during experimental structural builds.
Q: What is the maximum size camera this frame can accommodate natively?
A: The front carbon side plates are specifically spaced to accept standard 19mm micro FPV lenses natively. If you plan to use a smaller 14mm nano camera (like the RunCam Nano 4), you will simply need a standard 14mm-to-19mm plastic or TPU adapter spacer ring to lock it firmly into position.
