TBS CRSF Immortal T Antenna V2

Rs. 978.00
Rs. 978.00
Sale Sold out
Shipping calculated at checkout.
In stock (42 units), ready to be shipped

TBS CRSF Immortal T Antenna V2 – Ultra-Durable Long-Range RC Receiver Antenna

Are you losing telemetry or experiencing critical control glitches just when you punch out into a freestyle gap or push past the horizon? Stock linear receiver wires bend into carbon fiber frames, causing sudden failsafes that can instantly ground your rig. If you are an FPV drone racer, long-range cruiser, or commercial UAV operator utilizing the TBS CRSF Immortal T Antenna V2 is engineered to deliver an unbreakable link with absolute peace of mind.
Why Choose the TBS Immortal T V2? (Features vs. Benefits)
  • Upgraded Rubberized Center Housing: Drone racers are used to putting their receiver antenna out on the arm of the quad where it takes a heavy beating during high-speed crashes Fly High FPV. The newly designed centerpiece housing is made out of a rubberized plastic material which will allow a certain degree of bending to further minimalize damage from crashes [Fly High FPV].
  • Prop-Strike Proof Spring-Steel Element: Soft silicone wires easily get sucked into spinning props and sliced clean in half. The spring-steel element carries the same legendary immortality from the V1 generation, protecting itself from aggressive prop-strikes and incorrect mounting.
  • Enhanced Signal Sensitivity: Dropping packets behind thick concrete or dense forest trees risks a total aircraft loss. Further custom tuning on the center element provides significantly better coverage, improved signal sensitivity, and a cleaner overall range budget [Quadkart].
  • RF Balanced Internal Balun: High RF noise floor from on-board video transmitters and ESCs can heavily desensitize your control link. The built-in balun filters feedline noise, guaranteeing an optimal omnidirectional radiation pattern.
Technical Specifications

Parameter Specification
Manufacturer Team BlackSheep (TBS)
Frequency Range Optimized for 915MHz (With 868MHz operation compatibility)
Antenna Gain 2 dBi
Radiation Pattern Omnidirectional Dipole
Connector Type Low-Loss u.FL / IPX
Weight Ultra-lightweight ~3.4g

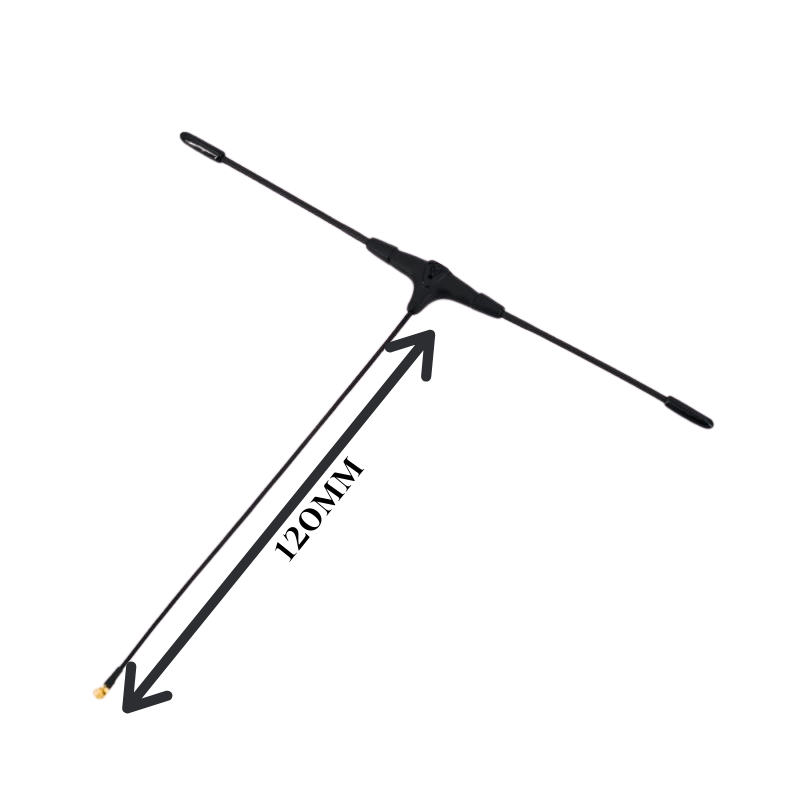

Cable Length Options 78mm (Standard) | 120mm (Extended) | 220mm (Long-Range)

This legendary receiver antenna is purpose-built to survive the harshest flight environments:
  • FPV Racing & Freestyle Miniquads: Mount it under the arm or on the rear standoff using a flexible TPU 3D mount to get maximum frame clearance.
  • Long-Range Cinematic Rigs: The extended 120mm and 220mm stem versions are the perfect companions for long-range pilots who require additional clearance over large batteries or carbon fiber plates.
  • Industrial Long-Range Fixed Wings: Perfect for mapping wings like the TBS Caipirinha 2 where long cable runs are required to clear internal electronics.
Q: Can I use this Immortal T V2 antenna with my 2.4GHz ExpressLRS (ELRS) or TBS Tracer receiver?
A: No. This antenna is specifically sized and tuned for sub-gigahertz 868MHz/915MHz Crossfire frequencies. Using it on a 2.4GHz system creates a major impedance mismatch, which will drastically decrease your control range and lead to immediate failsafes.
Q: Is it safe if the spring steel element touches my drone's carbon fiber frame?
A: No, avoid this. While the outer coating provides minor insulation, mounting the active antenna element directly flush against conductive carbon fiber will detune it and heavily degrade your signal range. Always utilize a dedicated TPU mount or spacer to clear the frame.
