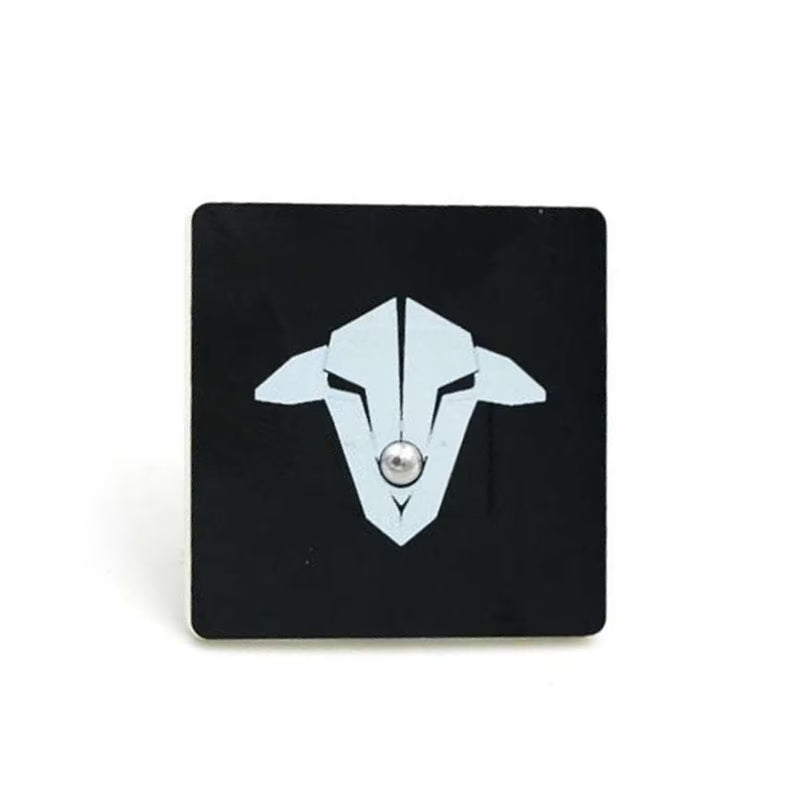

TBS RHCP Patch Antenna 5G8(SMA)

Rs. 6,000.00
Rs. 6,000.00
Sale Sold out
Shipping calculated at checkout.
Only 8 units left

TBS 5G8 RHCP Patch Antenna (SMA) – High-Gain Directional FPV Antenna

Are you losing your video signal the moment you fly behind a single tree or kick up dirt in a freestyle gap? Standard omnidirectional antennas scatter your video feed in all directions, leaving FPV drone pilots and racers with static, screen tearing, and sudden blackouts. If you are a freestyle pilot, racer, or long-range explorer using analog goggle modules or diversity receivers, the TBS RHCP Patch Antenna 5G8(SMA) is your solution to lock in a crystal-clear video feed.
Why Choose the TBS 5G8 Patch Antenna? (Features vs. Benefits)
  • Optimized 5dBi Directional Gain: Omnidirectional antennas lack the punch needed for solid penetration. This custom 5dBi gain focuses your reception forward, “The typical range for this antenna is a very comfortable 1.5km on a 200mW transmitter” so you can explore further with complete confidence.
  • Ultra-Wide 110° Beamwidth: Most high-gain patch antennas act like flashlights, cutting video if you turn your head slightly. “The 110-degree coverage area is more forgiving than higher-gain patches, reducing “dead zones” when moving your head” giving you maximum freedom while sitting in your pilot chair.
  • Right-Hand Circular Polarization (RHCP): Multipath interference from concrete structures and metal fences causes severe video ghosting. The precise RHCP design filters out bouncing, cross-polarized signals to deliver clean, unhampered imagery.
  • Ultra-Compact & Rugged Design: Traditional "cloverleaf" antennas bend, warp, and snap in your gear bag. “At only 35x35mm, it is smaller, lighter, and more durable” allowing you to mount it directly to your goggle-receiver without any awkward, heavy extensions.
Technical Specifications

Parameter Specification
Manufacturer Team BlackSheep (TBS)
Designed By IBCrazy (Video Aerial Systems LLC)
Working Frequency 5700 – 5900 MHz (5.8GHz Band)
Antenna Gain 5dBi
Polarization RHCP (Right-Hand Circular Polarization)
Beamwidth 110°

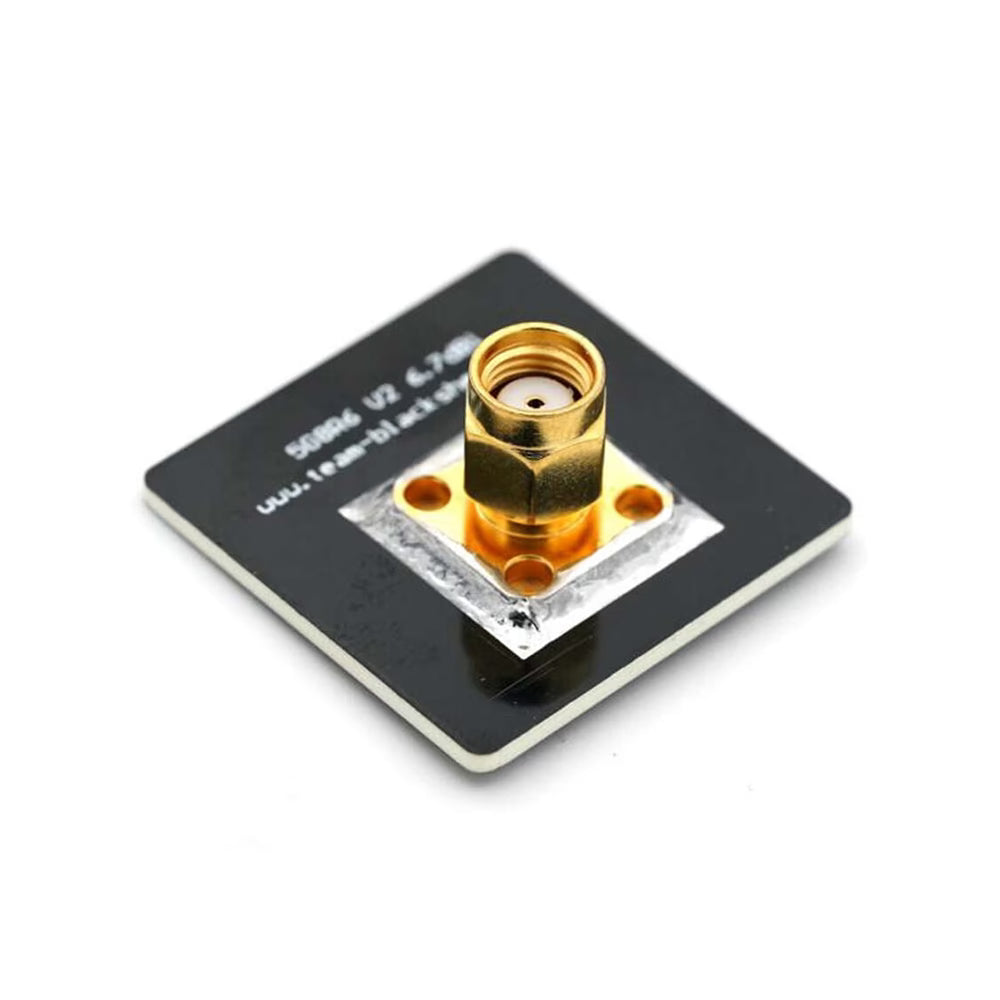

Connector Type SMA Male
Form Factor / Size 35mm x 35mm Ultra-Light Profile

This compact powerhouse is engineered by Team BlackSheep to upgrade standard ground station receiver setups:
  • FPV Goggle Modules: “The 5dbi gain provides enough beamwidth to comfortably mount this patch antenna directly to your goggle-receiver” like FatShark Dominator or RapidFire modules [Team BlackSheep].
  • Diversity Setup Companion: Pair it alongside a circular omni antenna to get the ultimate combination of close-range 360° coverage and long-distance directional penetration.
  • Freestyle Field Flying: Ideal for everyday field flights through structures where video bouncing is high.
Q: Can I use this antenna with a digital FPV system like DJI or Walksnail?
A: No. Most modern digital video systems rely on Left-Hand Circular Polarization (LHCP) by default. This patch antenna is built with Right-Hand Circular Polarization (RHCP) and is explicitly tailored for analog video ecosystems and matching RHCP quad transmitters.
Q: Do I need a pigtail cable extension to mount this patch?
A: No, a cable is not required. Because it is incredibly light and features a native SMA connector, you can screw it directly into your goggle receiver module or diversity station without creating any sagging weight.
Blast Through Video Interference Today
Stop letting signal dropouts ruin your lines and crash your quads. Get a massive performance leap for your analog gear without breaking the bank.
