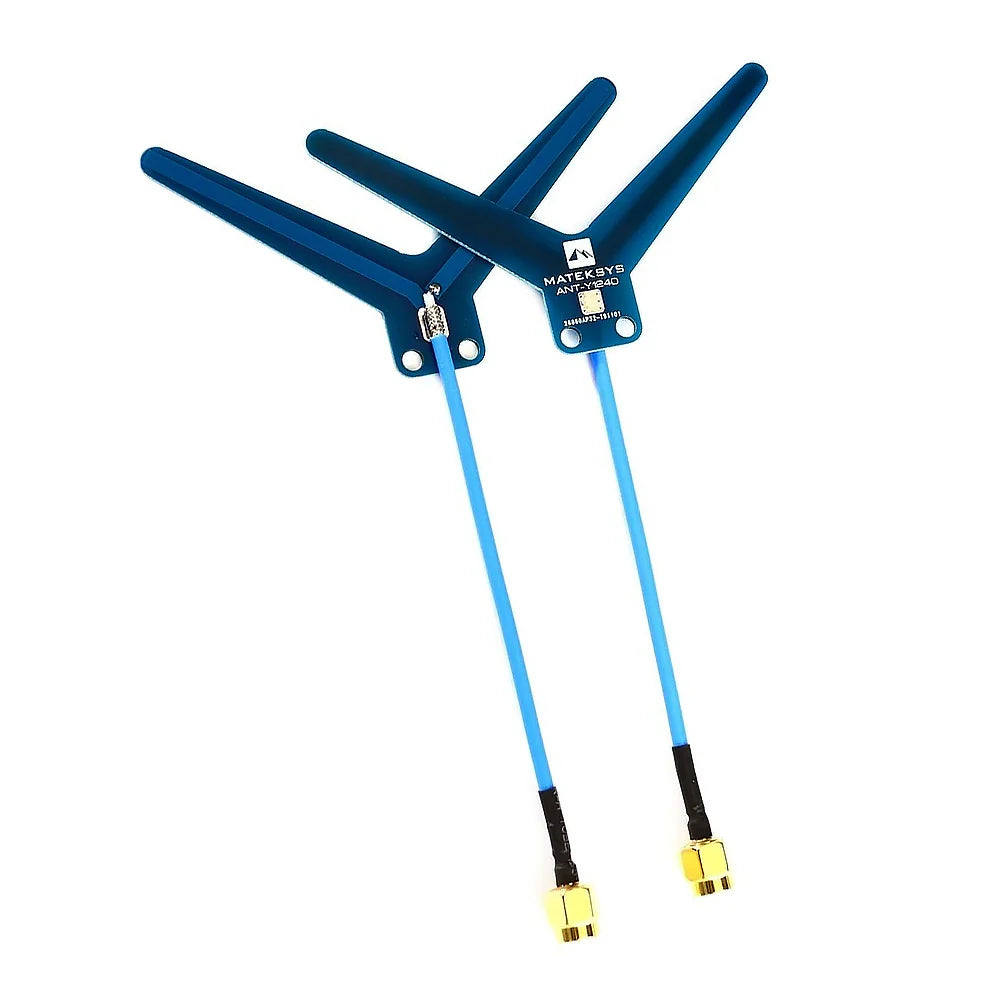

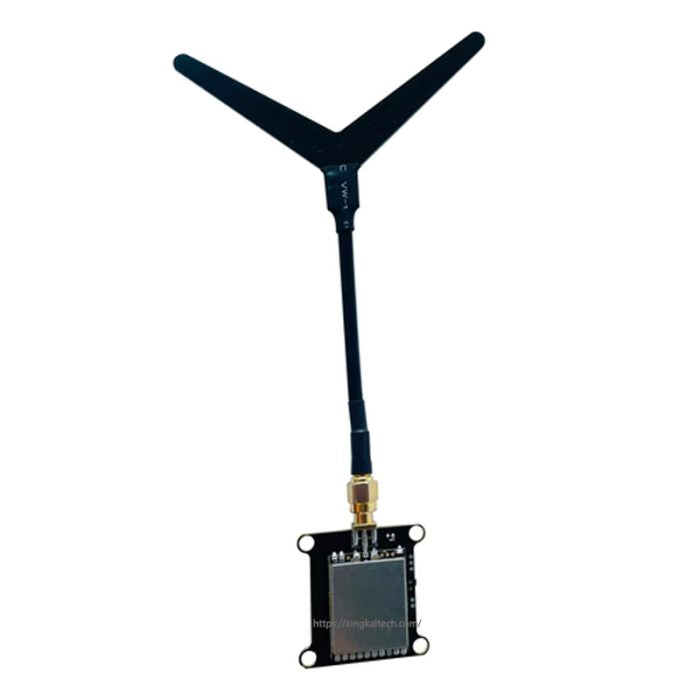

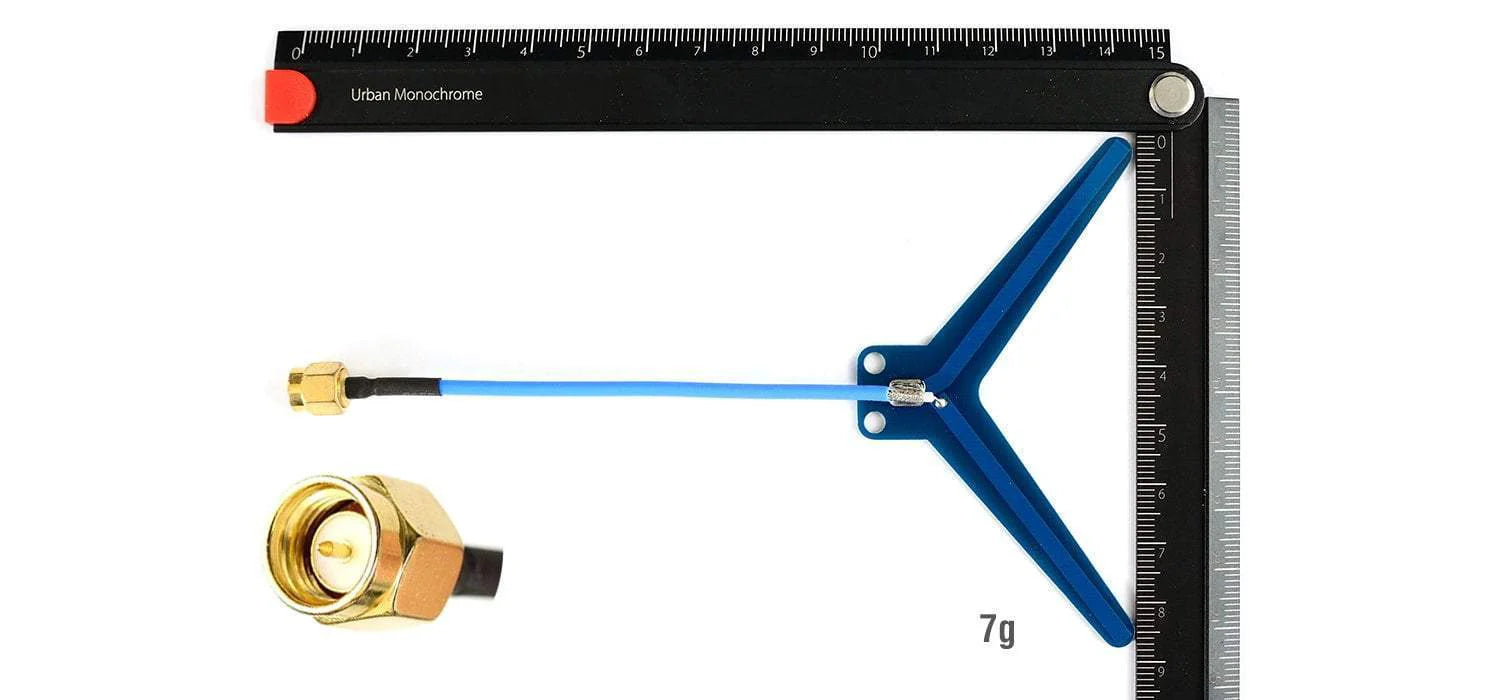

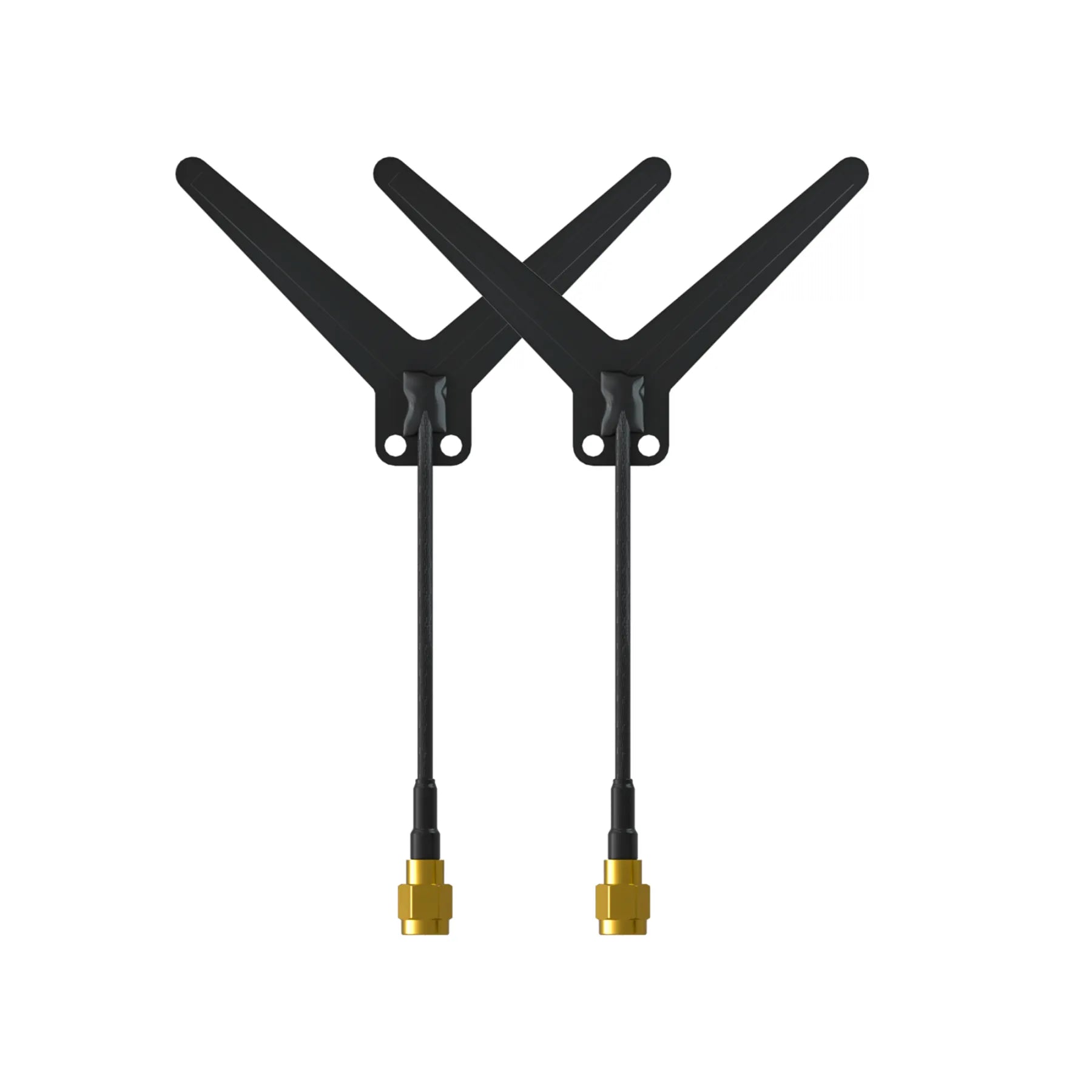

1.2GHz VTX/VRX Long-Range FPV Antenna for Drones & UAVs

Are you tired of frustrating video signal dropouts just as you push the limits of your flight radius? For extreme long-range exploration, standard 5.8GHz frequencies just won’t cut it.

Meet the ultimate solution for professional pilots, autonomous operators, and commercial UAV teams: the 1.2GHz VTX/VRX Long-Range FPV Antenna. Engineered specifically for unparalleled signal penetration and maximum range, this high-performance drone part ensures your video feed remains crystal clear—even through dense foliage, rolling hills, and urban obstacles.

Whether you are building a custom long-range cinematic quadcopter, a fixed-wing autonomous UAV for mapping, or upgrading a commercial search-and-rescue drone, choosing a dedicated 1.2GHz video transmitter (VTX) and video receiver (VRX) antenna setup is the single most important decision you will make for mission success.

Why Choose the 1.2GHz Frequency Band?

In the world of FPV (First Person View) drones, operating frequency dictates your physical boundaries. While 5.8GHz is fantastic for close-range racing due to its compact hardware, it completely lacks the wave penetration and diffraction needed for serious distance.

The 1.2GHz frequency band utilizes much longer wavelengths. These longer RF waves excel at "bending" around massive obstacles and punching straight through solid objects. If you are flying behind concrete structures, deep into mountain valleys, or low to the ground, this long-range FPV antenna provides a highly robust RF link. It actively minimizes multi-path interference and prevents sudden screen blackouts, making it the top choice for serious enterprise pilots and hobbyists worldwide.

Technical Specifications

Key Performance Features

• Advanced Circular Polarization: Actively rejects reflected, bounced signals. This eliminates phase cancellation and multipathing, giving you a remarkably stable, ghost-free video feed.

• Zero RF Noise Interference: Because the 1.2GHz band sits comfortably away from crowded 2.4GHz and 5.8GHz spectrums, you will experience zero interference from local Wi-Fi routers, cell towers, or 915MHz/868MHz RC control links (like ELRS or Crossfire).

• Optimized Radiation Pattern: Tuned precisely for an exceptionally low SWR (Standing Wave Ratio) to maximize transmitter efficiency and protect your expensive VTX from overheating.

Installation & FAQ Quick Guide

• Avoid Carbon Shielding: Carbon fiber is highly conductive and shields RF signals. Never mount your antenna flush against the frame. Always use a rigid, 3D-printed TPU mount to extend the active antenna element away from the carbon chassis and high-density battery packs to maintain a clean line of sight (LOS).

• Match Polarization: Ensure that both your transmitter (VTX) antenna and your receiver (VRX) antenna share the exact same polarization (both RHCP or both LHCP). Mismatching them results in a massive cross-polarization signal loss of up to 26dB!

• GPS Protection: 1.2GHz video transmitters can emit secondary harmonics that land near the GPS band (1.5GHz). To prevent interference, mount your GPS module as far away from the VTX antenna as physically possible and install a high-quality 1.2GHz low-pass filter.

• Expected Distance: Under optimal line-of-sight conditions with a clean RF environment and a high-power VTX, pilots regularly achieve clear video distances ranging from 10km to over 40km.

Upgrade your drone parts arsenal today. Add the 1.2GHz VTX/VRX Long-Range FPV Antenna to your cart and experience the sky without boundaries!
