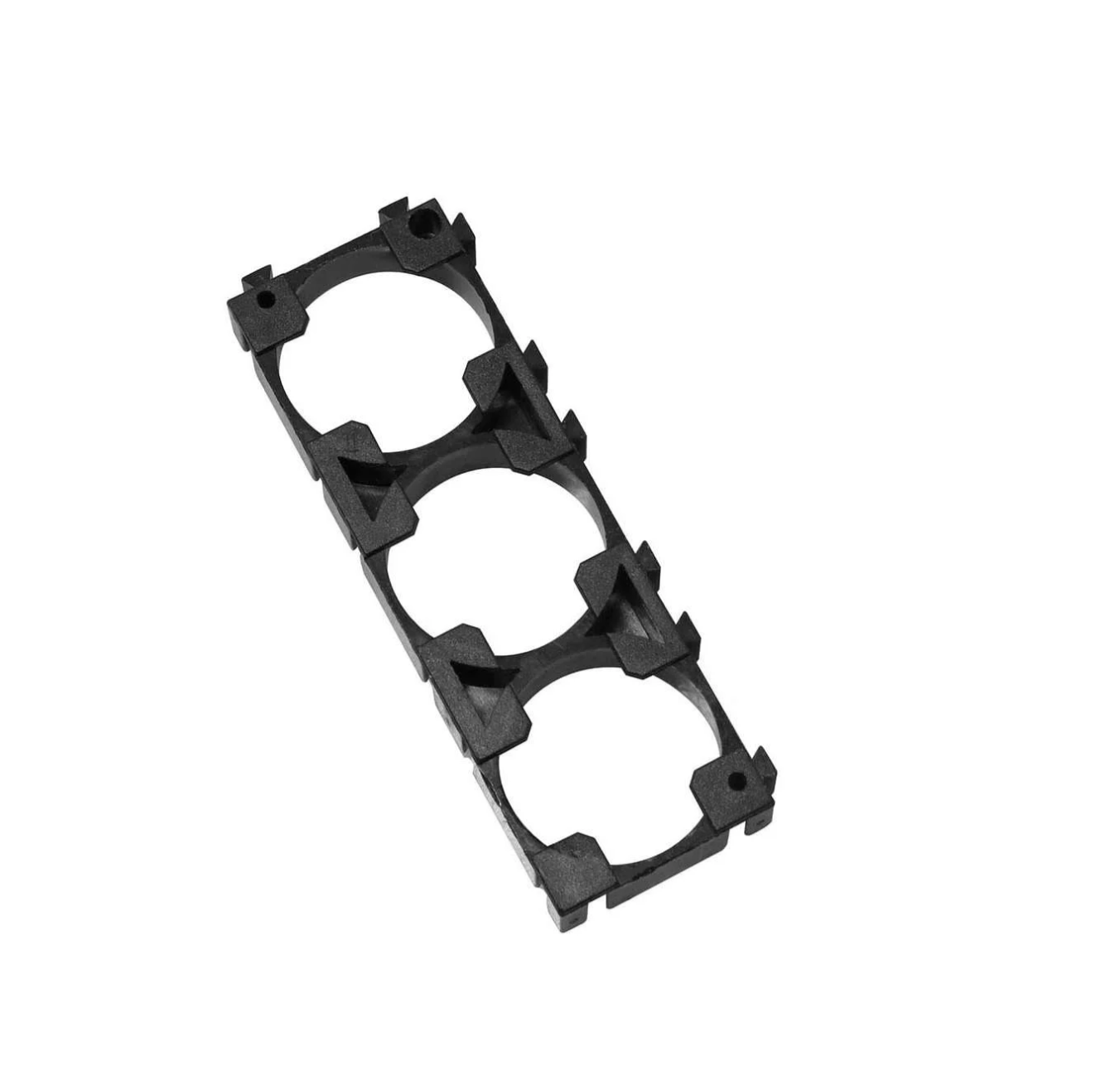

Battery cell holder-3 hole 1X3
Regular price
Rs. 49.00
Sale price
Rs. 49.00
Regular price
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
In stock (5250 units), ready to be shipped
Couldn't load pickup availability

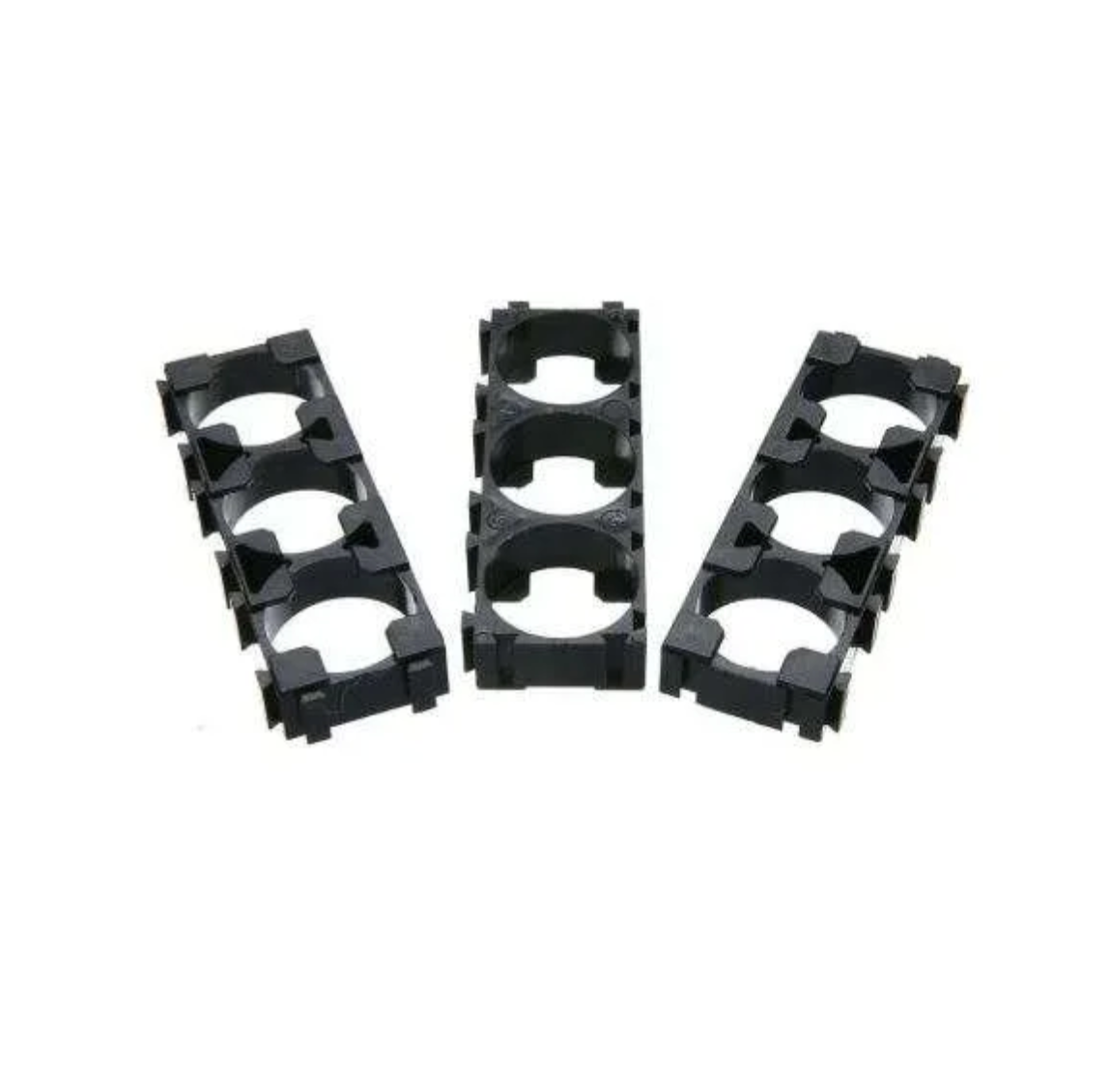

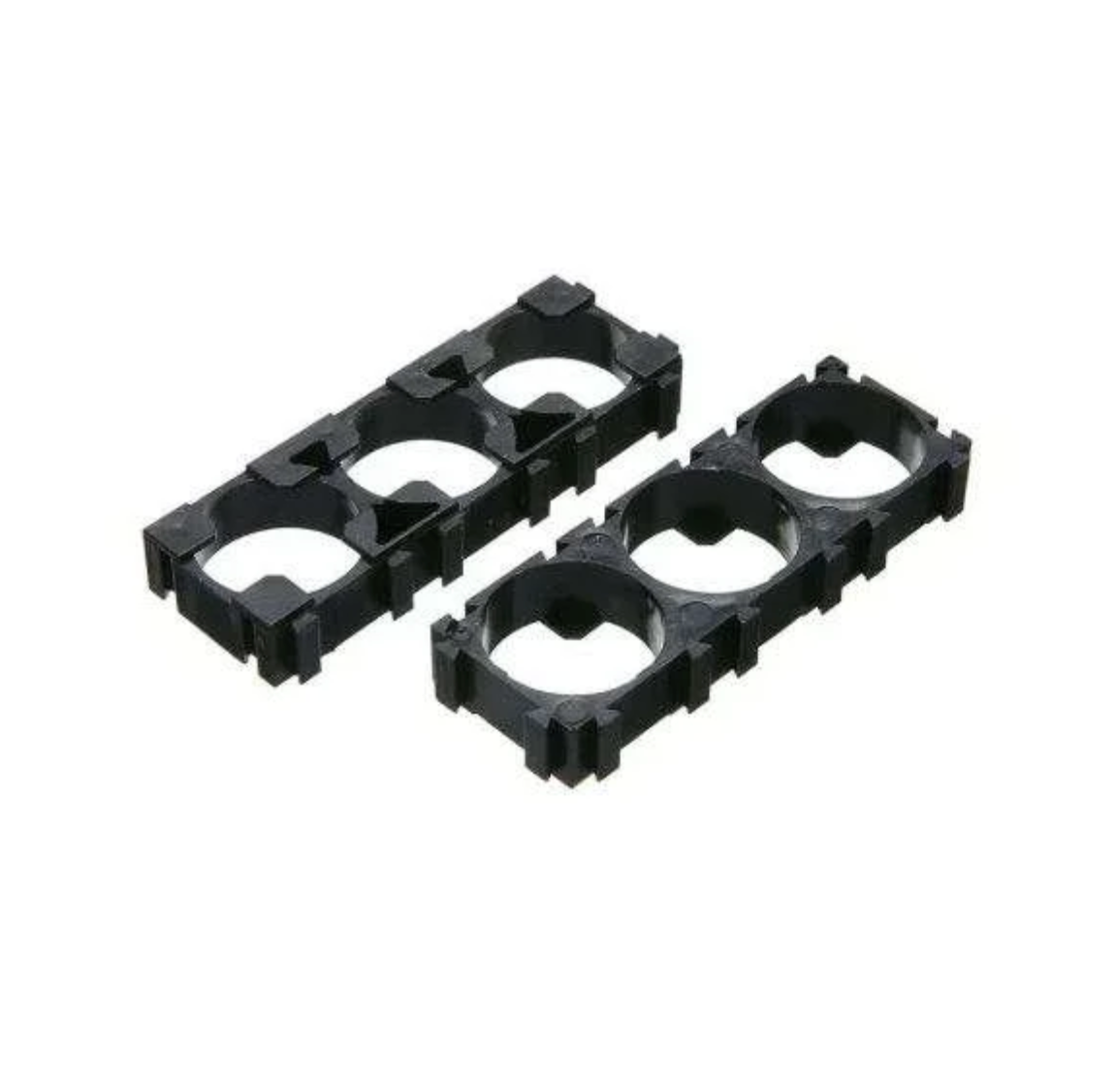

Tri-Slot Cylindrical Battery Cell Holder – 3-Hole (1x3 Array) Spacer Bracket
Are your custom battery packs rattling, flexing, or heating up during high-current operations? Taping cylindrical cells directly together or hot-gluing them in a cluster leads to friction wear, short circuits, and severe thermal hazards that can destroy your hardware. If you are a DIY EV technician, robotics engineer, or smart-grid creator building high-performance battery modules, the Tri-Slot 1x3 Battery Cell Holder is engineered to provide robust structural isolation, neat cable management, and safe thermal spacing.
Why Choose Our 1x3 Battery Cell Holder? (Features vs. Benefits)

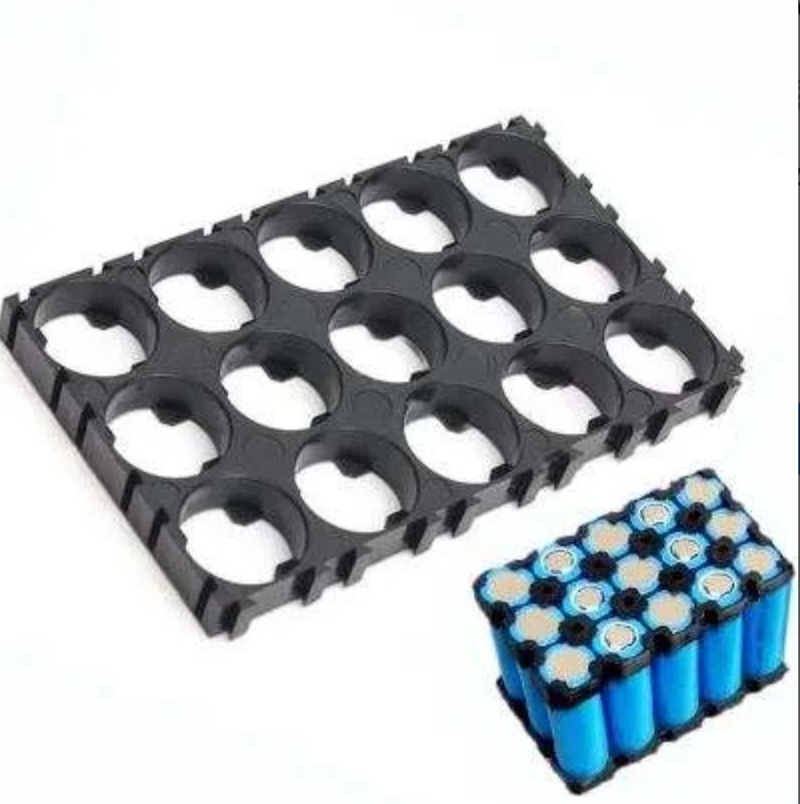

- Modular Interlocking Tracks: Standard fixed enclosures force you into rigid, pre-defined layouts. These brackets feature built-in interlocking side slots, allowing you to seamlessly click multiple 1x3 rows together to build custom 3S, 4S, or massive multi-parallel matrix packs.
- Optimal Airflow Cool-Gap: Densely packed cells trap extreme heat, shortening battery lifespan and increasing thermal runaway risks. The precise spacer gap ensures continuous passive ventilation around each cell, keeping your high-drain packs cool under load.
- Flame-Retardant ABS+PC Composition: Cheap plastic spacers warp under minor heat and snap under heavy machine vibrations. Crafted from an industrial-grade ABS and Polycarbonate blend, these holders resist high impacts, absorb mechanical shocks, and handle high heat without flexing.
- Precise Dimensional Tolerances: Inconsistent bracket sizes cause cells to slide around loosely or crack the outer plastic walls during press-fitting. Our high-precision injection molds grip the outer diameter of your cells tightly, ensuring perfect spot-welding alignment for your nickel strips.
Technical Specifications
| Parameter | Specification |
|---|---|
| Grid Arrangement | 1 Row x 3 Columns (3-Hole Array Configuration) |
| Material Base | High-Grade, Flame-Retardant ABS + PC Blend |
| Structural Feature | Slide-Lock Dovetail Interlocking Slots on All Borders |
| Cooling Clearance | ~1.5mm Internal Venting Gap |
| Primary Function | Cell Insulation, Anti-Vibration Support, Structural Grid Foundation |
This modular 3-hole structural spacer is engineered specifically for clean and secure battery builds:
- Electric Vehicle (EV) Retrofitting: Build vibration-proof, high-capacity power banks for custom e-scooters, electric cycles, and RC crawler chassis.
- DIY Solar Energy Walls: Securely arrange high-density LiFePO4 or Lithium-Ion cell matrix layouts for home energy backups or field power stations.
- Robotics & Autonomous UGV Packs: Secure heavy onboard power cells against rough terrain drops, high-speed impacts, and sudden acceleration.
- Power Tool Battery Rebuilding: Replace broken, degraded internal battery holders in cordless power tools with highly structural, temperature-resistant grid brackets.
Q: Do these holders require structural glue or tape to stay joined together?
A: No. The borders are molded with physical slide-in locking tracks. You simply align the edge tracks and firmly slide them together until they click lock. However, for extreme vibration environments (like racing karts or off-road drones), applying a small drop of hot glue along the outer seam adds maximum permanent rigidity.
A: No. The borders are molded with physical slide-in locking tracks. You simply align the edge tracks and firmly slide them together until they click lock. However, for extreme vibration environments (like racing karts or off-road drones), applying a small drop of hot glue along the outer seam adds maximum permanent rigidity.
Q: Are these brackets flat enough to accommodate standard spot-welding nickel strips?
A: Yes, absolutely. These brackets are fully standardized to align perfectly with standard 1x3 or multi-row pure nickel welding strips. The plastic rim sits completely flat and flush with the battery terminals so your spot welder's copper pins can make instant, solid electrical contact without obstruction.
A: Yes, absolutely. These brackets are fully standardized to align perfectly with standard 1x3 or multi-row pure nickel welding strips. The plastic rim sits completely flat and flush with the battery terminals so your spot welder's copper pins can make instant, solid electrical contact without obstruction.
