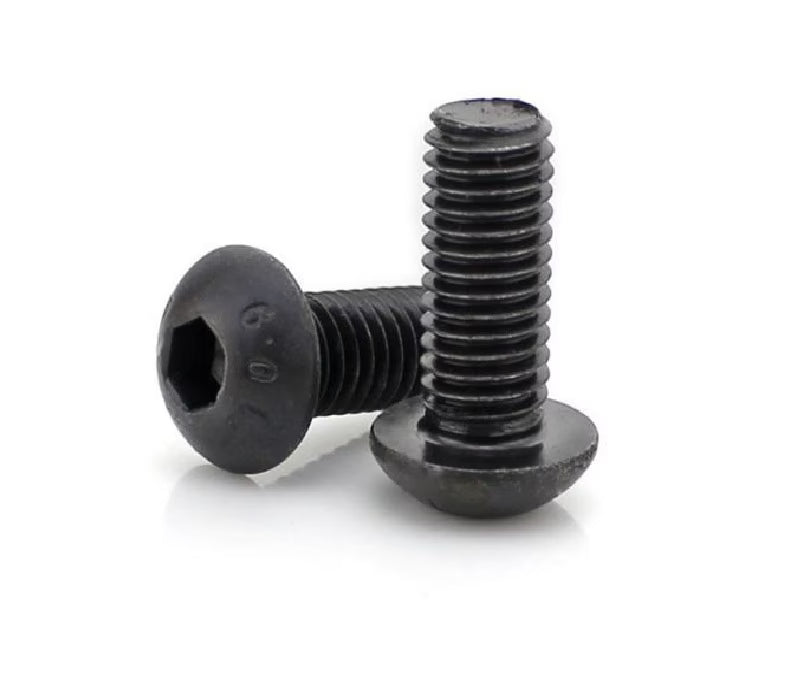

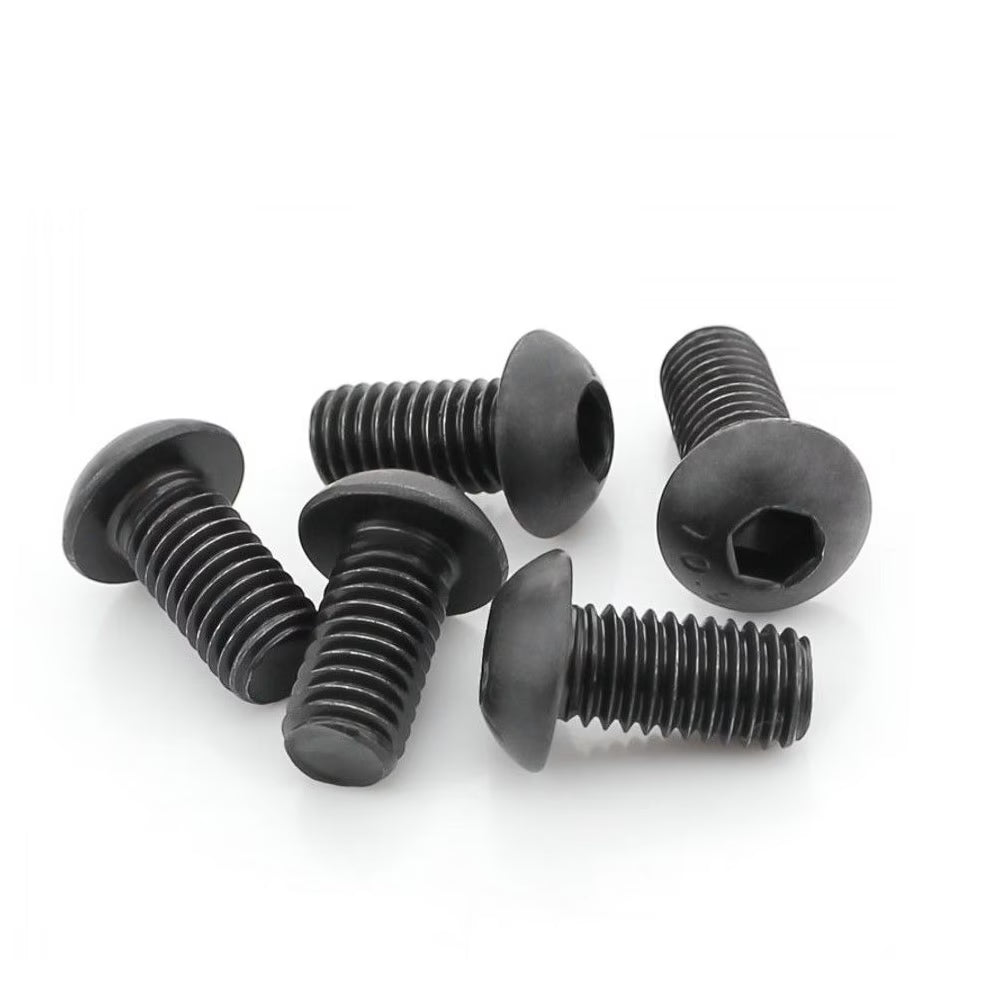

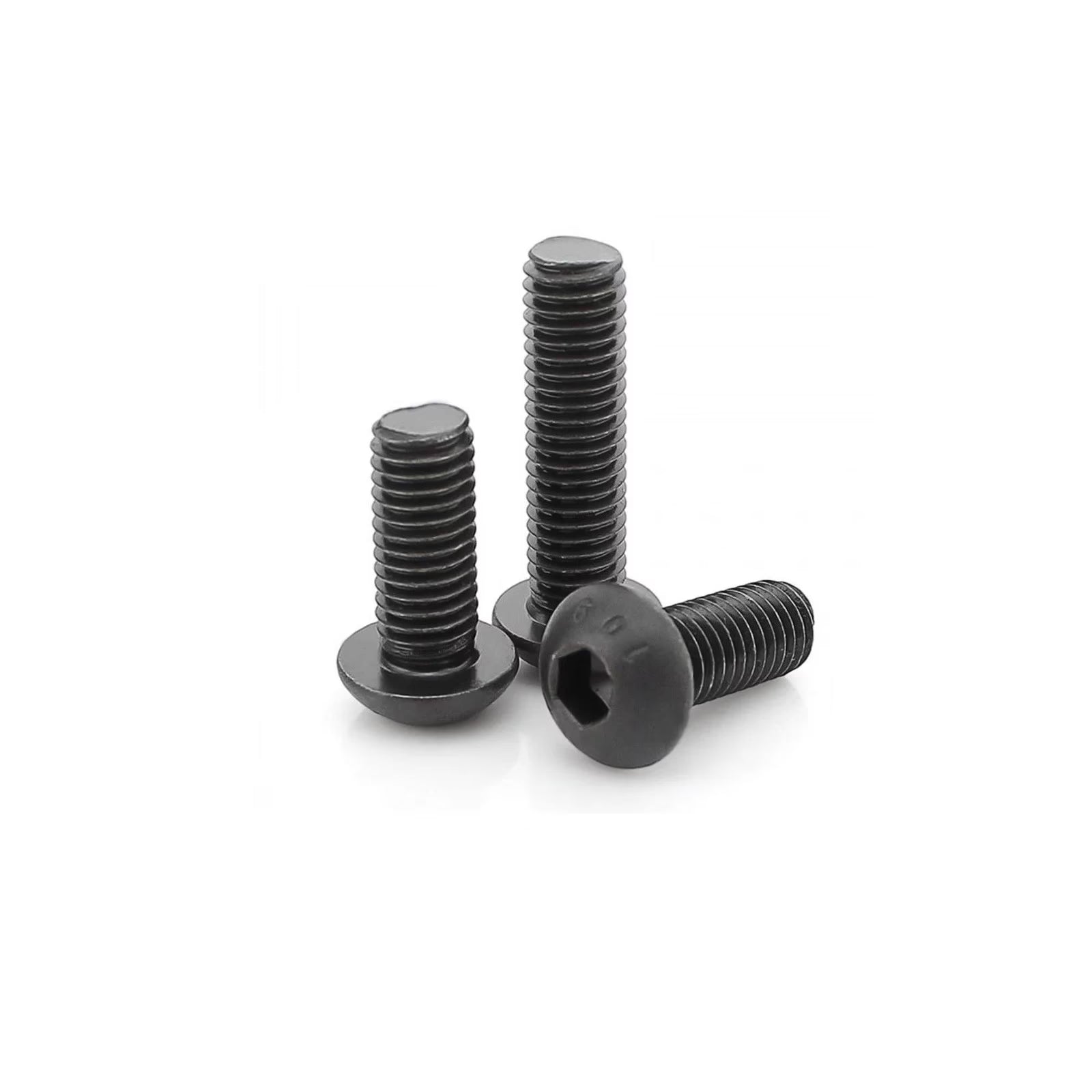

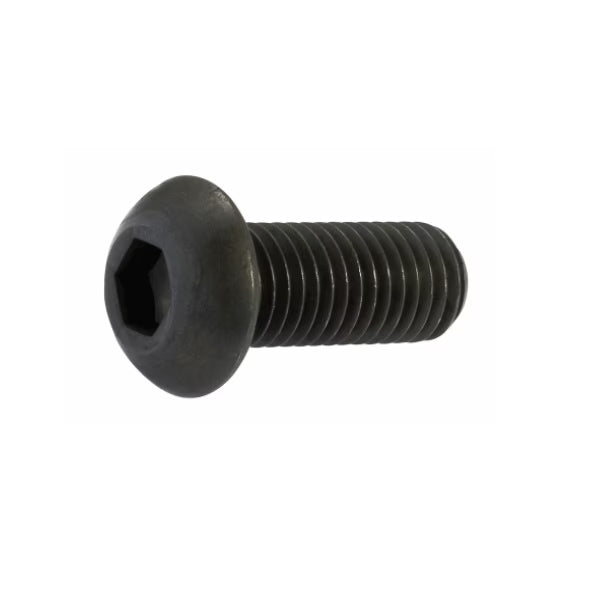

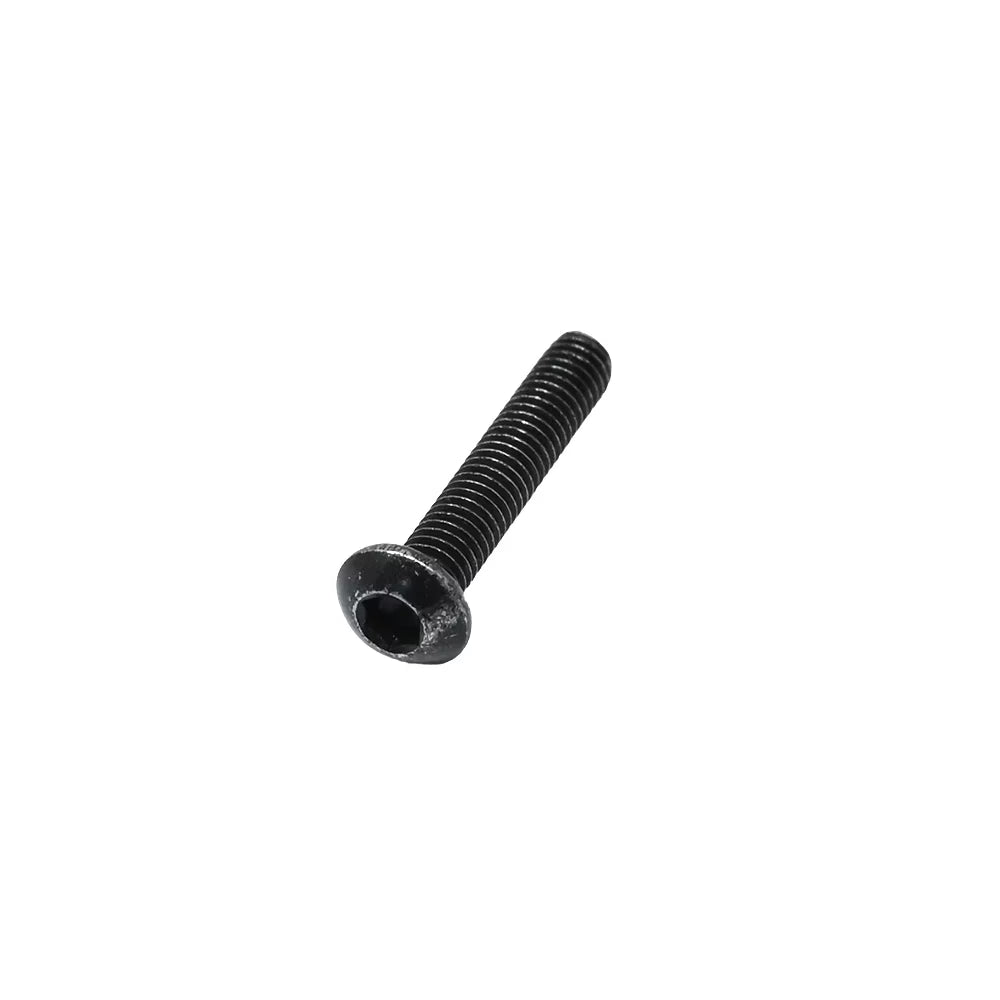

Button Head M4×16MM Screw – Drone Fastening Bolt for FPV & UAV

When engineering advanced long-range UAVs, enterprise surveying quadcopters, or professional heavy-lift cinema rigs, selecting the correct structural fasteners determines the overall lifespan of your airframe. Drones operate in demanding aerodynamic conditions, with high-torque brushless motors passing intense low-frequency vibrations throughout the carbon fiber chassis. In this high-stress flight environment, loose or weak hardware leads to structural flexing, tracking drift, and catastrophic mid-air mechanical failures.

The industry-standard locking solution for rigid structural joints is the Button Head M4×16MM Screw – Drone Fastening Bolt for FPV & UAV. Engineered with a low-profile dome-shaped head and precision metric threads, this high-tensile structural screw delivers massive clamping power without adding unnecessary aerodynamic drag. Whether you are clamping thick multi-layered frame arms, mounting heavy-duty landing gears, or building rugged field electronics boxes, this premium drone part provides the optimal depth and thread security required for heavy-duty builds.

The Mechanical Advantages of the 16mm Button Head Geometry

In heavy UAV assembly, standard socket cap screws protrude too far off the frame surface, snagging easily on battery straps, external wiring looms, or field elements during hard landings.

The M4×16MM button head drone bolt eliminates these design flaws entirely:

• Low-Drag Dome Shape: Sits flush against the chassis surface, minimizing snags on battery wires and landing paths while preserving clean aerodynamics.

• Uniform Clamping Footprint: Distributes pressure evenly to prevent the screw from micro-fracturing or crushing premium woven carbon fiber plates under high torque values.

• Optimized 16mm Depth: Provides the exact depth needed to cleanly pass through multiple carbon fiber frame beds and bite deeply into matching M4 standoffs or locknuts.

Technical Specifications

Isolating Internal Electronics from Structural Harmonics

Large multirotor drones carry sensitive processing cores that handle complex navigation logic. Heavy component configurations depend on a completely rigid frame to interpret sensor data correctly.

If your structural frame screws are loose or flexing, raw motor vibrations will bypass your isolation grommets. This causes massive data noise on your gyro sensor chip, leading to sudden mid-air drops or unexplainable flight twitches. Securing your core structural joints with our premium M4 fasteners builds an iron-clad cage around your core systems. The unyielding clamping pressure locks your frame plates together as a single solid unit, ensuring your flight controller isolates background noise and your high-power video equipment outputs a crisp, line-free FPV feed to your ground station.

Frequently Asked Questions (FAQs)

Will this M4 screw fit standard 5-inch racing drone kits?

No. Standard 5-inch FPV racing mini-quads use lighter, smaller M3 hardware sets. This heavier M4×16mm size is custom-engineered for larger 7-inch, 10-inch, industrial surveying, or heavy-lift commercial UAV platforms that demand superior cross-sectional strength.

How do you accurately measure the 16mm length on a button head bolt?

In metric button head configurations, the 16mm functional length is measured starting exactly from the flat underside of the rounded dome head down to the very tip of the threaded shaft. The thickness of the dome head itself is never included.

Fortify Your Drone Chassis with Absolute Precision

Don't let a loose frame joint or a stripped hardware thread put your high-end processing electronics or expensive payload systems at risk. The Button Head M4×16MM Screw – Drone Fastening Bolt for FPV & UAV offers the industrial-grade tensile strength, precise metric thread tracking, and low-drag aerodynamic profile needed to survive intense flight forces and harsh crash impacts. Keep your frame rigid, prevent battery strap damage, and assemble your high-load airframe with total mechanical confidence.

Add this premium M4×16MM button head screw kit to your cart today, stock up your professional drone parts toolkit, and complete your next custom multirotor build with structural perfection!
