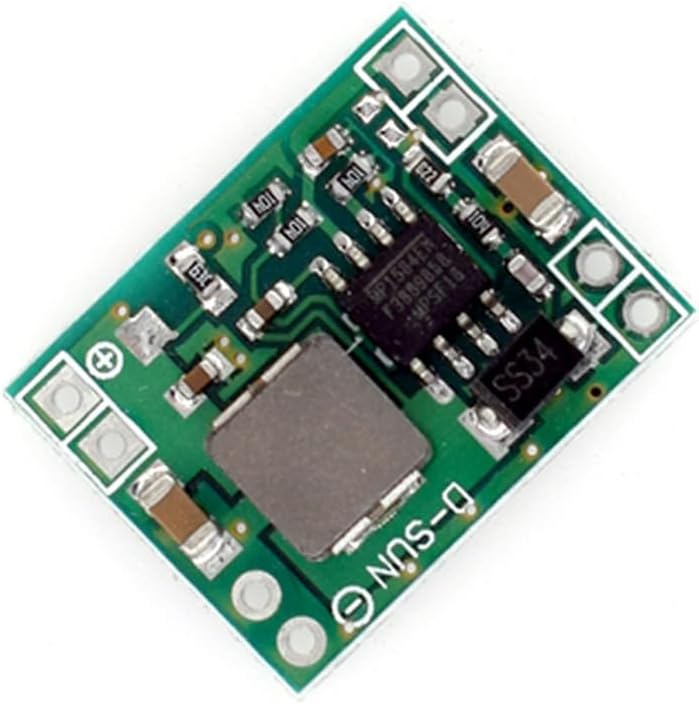

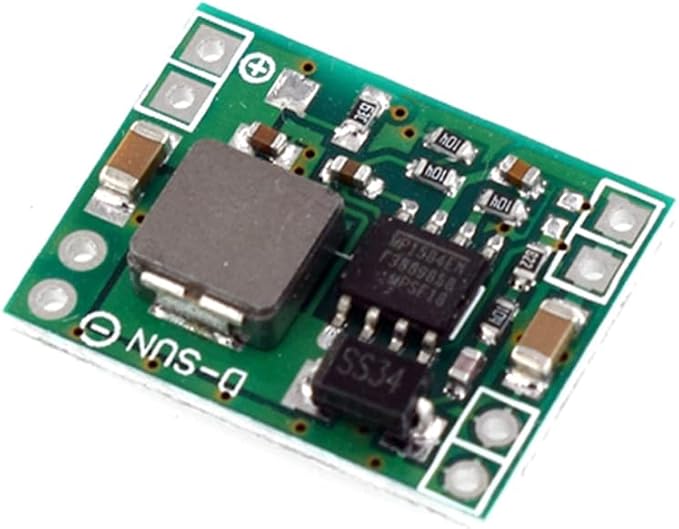

DSN-MINI-360-100 Buck Converter – DC Step Down Voltage Regulator for Drone & Electronics

When assembling complex multirotors or compact robotic electronics projects, managing clean and stable power distribution is a major engineering hurdle. High-voltage flight batteries deliver immense power, but delicate components like FPV cameras, LED strips, GPS modules, and microcontrollers will burn instantly if connected directly to raw battery pads. The ultimate space-saving solution is the DSN-MINI-360-100 Buck Converter – DC Step Down Voltage Regulator for Drone & Electronics.

This ultra-miniature, non-isolated step-down module effortlessly scales down high input voltages into steady, adjustable, and safe operating voltages for all your auxiliary components. Weighing next to nothing and sporting a micro-sized physical footprint, this high-efficiency voltage regulator is an indispensable drone part for custom quadcopter builders, fixed-wing UAV engineers, and electronics DIY hobbyists alike.

The Power Efficiency of Synchronous Rectification

In modern drone parts development, thermal efficiency and weight reduction are paramount. Traditional linear voltage regulators step down voltage by turning excess energy into raw heat, which wastes valuable battery capacity and requires heavy metal heatsinks.

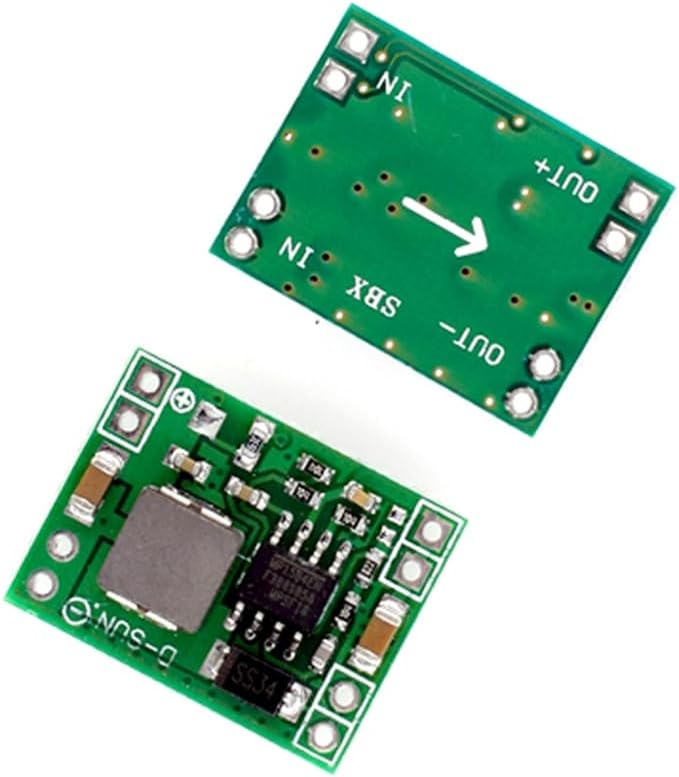

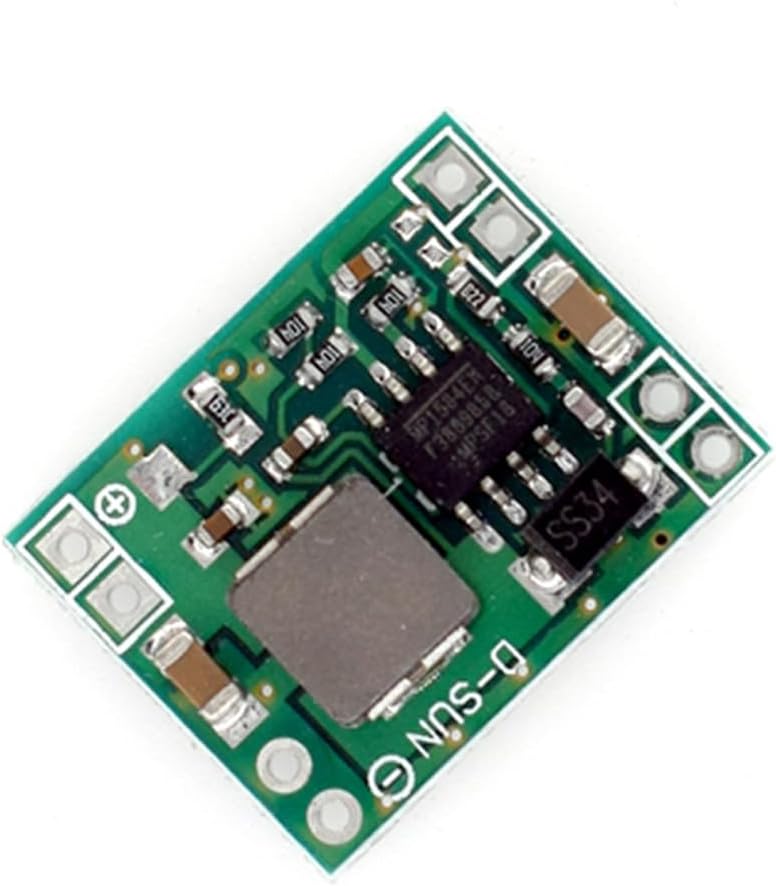

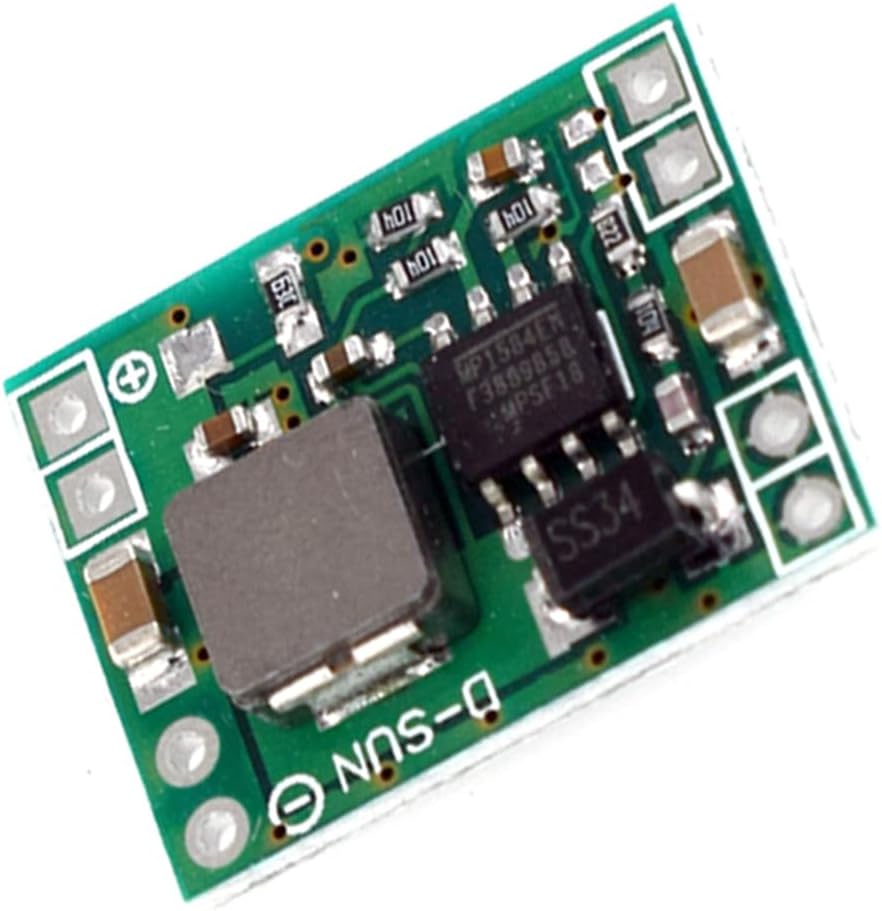

The Mini 360 step-down module utilizes an advanced synchronous switching architecture driven by an integrated control chip and a molded power inductor. Running at a high switching frequency of 340kHz, this DC-DC regulator achieves an outstanding energy conversion efficiency rating of up to 96%. Virtually no energy is wasted as heat, keeping your aircraft running cooler and maximizing overall flight times.

Key Hardware Enhancements & Features

• Ultra-Compact Micro Footprint: Designed to slide cleanly into crowded flight controller stacks or narrow wing bays without altering your center of gravity.

• Fully Adjustable Output Voltage: Features a precise, onboard multi-turn potentiometer to fine-tune the exact output voltage needed for custom electronics gear.

• High Output Current Capability: Delivers a reliable 1.8A continuous output current with short-duration surge protection supporting up to 3A peak loads.

• Wide Input Voltage Spectrum: Safely handles a wide input window from 4.75V DC up to 23V DC, making it perfectly compatible with 2S, 3S, 4S, and 5S LiPo drone battery setups.

Technical Specifications

Advanced Power Regulation for FPV Systems & UAVs

Clean power is everything when capturing a crisp video link. Electrical noise from high-KV brushless motors and high-current Electronic Speed Controllers (ESCs) can bleed back into your system wires, causing heavy horizontal lines and interference across analog video screens.

The DSN-MINI-360-100 Buck Converter steps in as an effective barrier. With a remarkably low no-load output ripple of just 30mV, it provides ultra-smooth, stable direct current. This clean power feed is exactly what sensitive video gear, like low-voltage FPV transmitters (VTX) or specialized telemetry radios, requires to maintain optimal line-of-sight performance without signal degradation.

Frequently Asked Questions (FAQs)

Can this module step up voltage from a lower battery pack?

No. This is strictly a buck (step-down) converter. The output voltage must always be set lower than the incoming battery voltage. If you need to increase voltage, you will require a boost converter.

How do I adjust the output voltage?

There is a tiny brass screw potentiometer on top of the module. Turning it clockwise or counterclockwise with a precision screwdriver allows you to sweep the output voltage seamlessly across the 1V to 17V scale.
