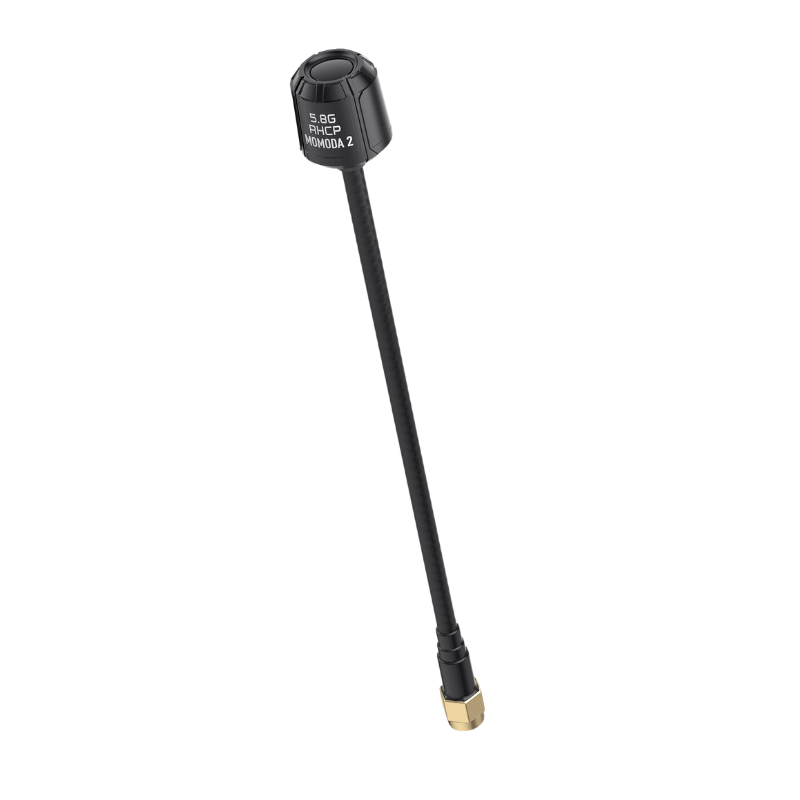

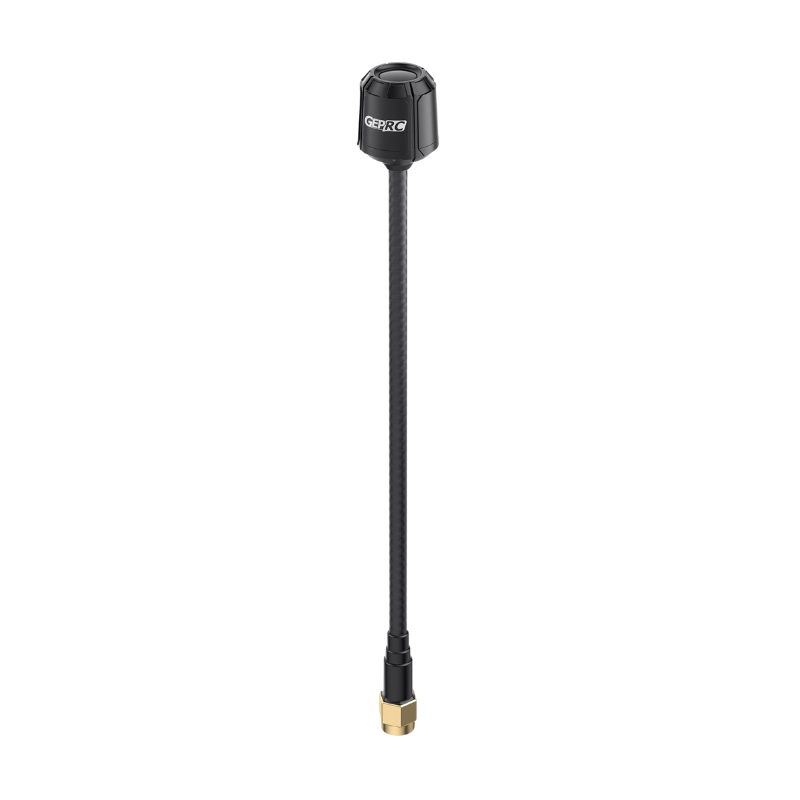

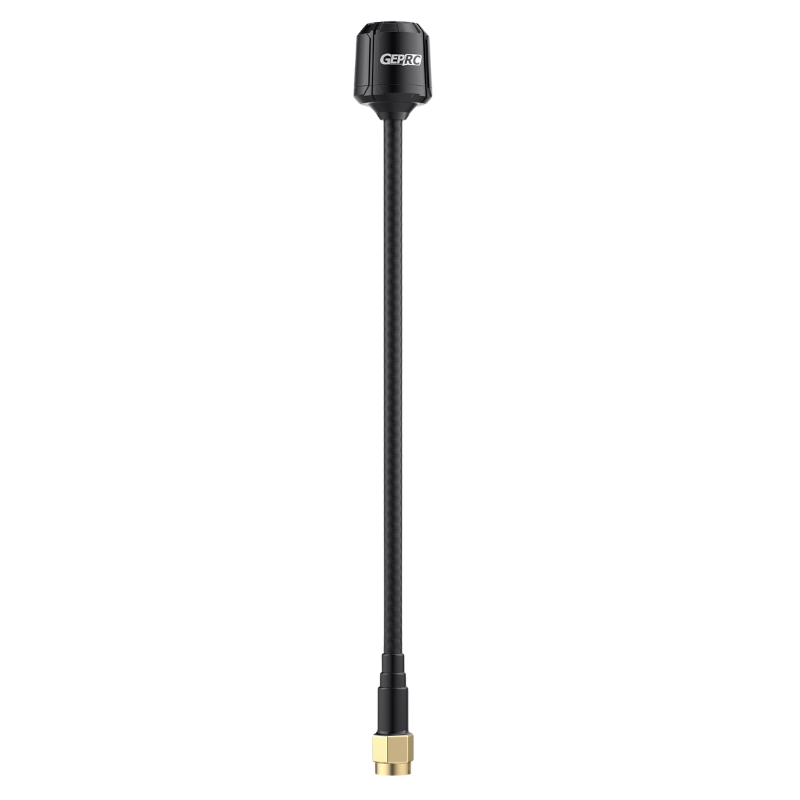

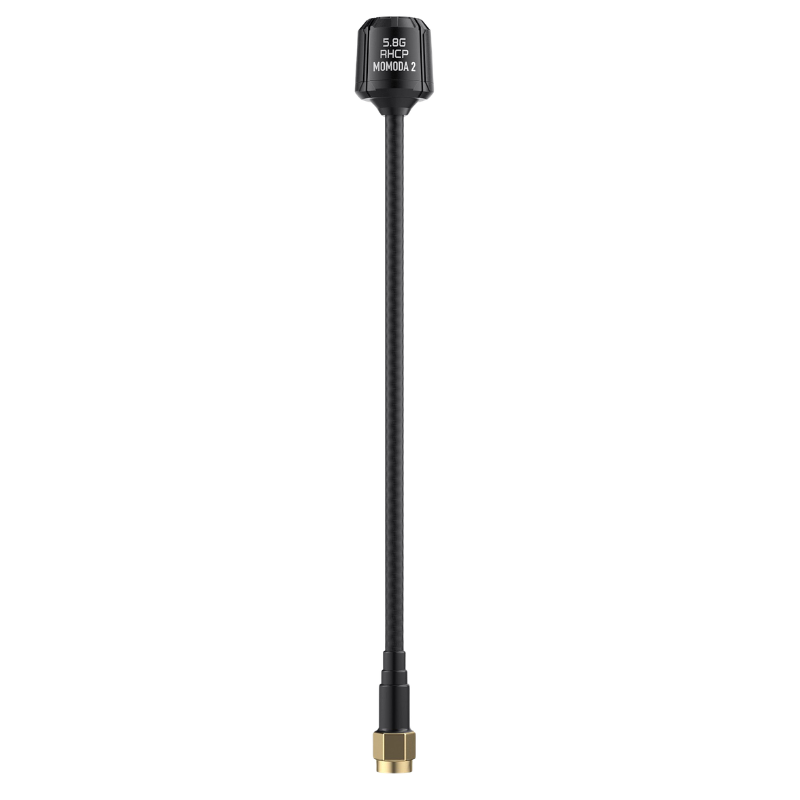

GEPRC Momoda 2 170MM 5.8GHz RHCP SMA Antenna – Long Range FPV Drone Antenna

GEPRC Momoda 2 170MM 5.8GHz RHCP SMA Antenna

The GEPRC Momoda 2 isn't just another antenna; it’s a high-performance radio frequency solution designed to squeeze every bit of range out of your analog video transmitter (VTX). By pairing a robust PCB (Printed Circuit Board) with a flexible FPC (Flexible Printed Circuit) structure, GEPRC has managed to enhance signal consistency while drastically minimizing power loss. This means a cleaner, more reliable video feed, even when you're pushing the limits of your drone's range.

Why Pilots Choose the Momoda 2

In the world of FPV, the antenna is the most critical link in your chain. The Momoda 2 features an incredibly low SWR (Standing Wave Ratio) of ≤1.43, which ensures that almost all the power from your VTX is being radiated as a signal rather than wasted as heat. This results in better penetration, fewer "video drops," and a much more stable image in challenging flight environments like dense forests or large structures.

Engineered for Longevity

The "Momoda" series is famous for its sleek, metallic style and durable exterior. The 170mm length is the perfect "long version" for builds where you need to get the antenna far away from potential signal-blocking components like carbon fiber frames or high-capacity batteries. Furthermore, every single antenna is tested with a professional spectrum analyzer before it leaves the factory, guaranteeing that the performance you get is exactly what the designers intended.

Key Features

• Advanced PCB+FPC Structure: Minimizes transmission loss and ensures maximum signal efficiency.

• 170mm Long Version: Ideal for long-range and freestyle drones where frame clearance is a priority.

• Low SWR (≤1.43): Ensures maximum power output and signal stability.

• RHCP Polarization: The industry standard for interference rejection in high-performance FPV.

• Factory Tested: Each antenna is individually checked for performance compliance, ensuring quality you can trust.

Technical Specifications

• Center Frequency: 5.65GHz

• Bandwidth: 5.3GHz – 6GHz

• Gain: 2.45dBi

• Polarization: RHCP

• Connector Type: SMA

• Length: 170mm

• Design: FPC + PCB Hybrid
