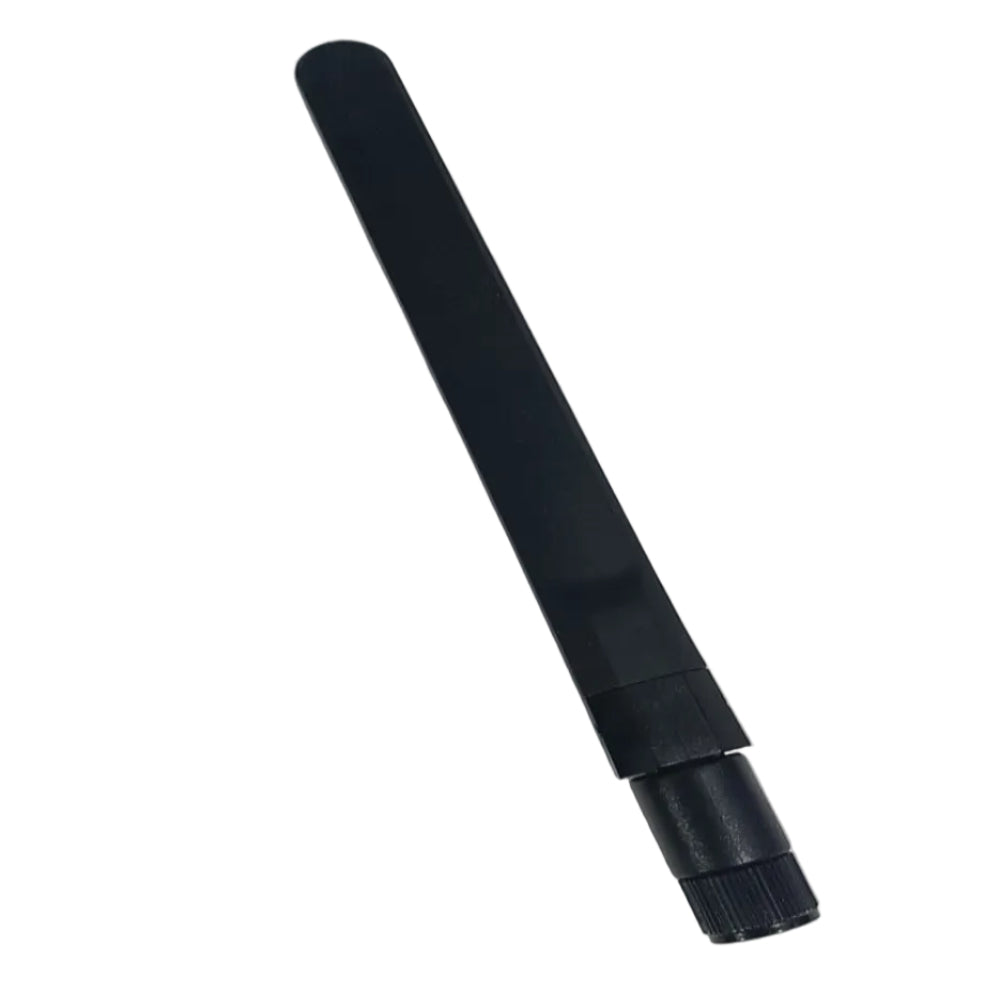

LHCP Antenna 2.4/5.8Ghz

Rs. 2,498.00
Rs. 2,498.00
Sale Sold out
Shipping calculated at checkout.
Only 2 units left

2.4GHz / 5.8GHz Dual-Band LHCP FPV Antenna

Are you losing your video feed or experiencing sudden packet drops mid-flight? Linear stock antennas cause severe multi-path interference, leaving FPV drone pilots and robotics engineers with screen flickers, pixelation, and failsafes. If you are a long-range pilot, cinematic shooter, or building a heavy-duty autonomous UGV using digital transmission systems like DJI or Walksnail, the SkyLink Pro Dual-Band LHCP Antenna is engineered to eliminate signal drops and protect your expensive rig.
Why Choose the SkyLink Pro Dual-Band LHCP? (Features vs. Benefits)
  • True Dual-Band Integration (2.4G & 5.8G): Carrying separate antennas for control links and video feeds adds unnecessary weight. This single-unit housing covers both critical frequencies, ensuring a rock-solid control link and a crystal-clear HD video stream simultaneously.
  • Left-Hand Circular Polarization (LHCP): Standard linear antennas allow bouncing signals to disrupt your direct feed. Our precise LHCP pattern rejects up to 99% of cross-polarized reflections, giving you unmatched penetration behind concrete buildings and dense forest canopies.
  • Ultra-Durable Injection Molded Shell: Exposed antenna elements snap instantly during high-speed crashes. This array is completely sealed inside an impact-resistant polycarbonate casing, allowing it to take heavy impacts and concrete scratches without shifting or breaking.
  • Omni-Directional 360-Degree Coverage: Directivity constraints cause blind spots when your drone tilts or flips. The uniform omnidirectional radiation pattern maintains maximum signal strength regardless of your aircraft's orientation.
Technical Specifications
Parameter Specification
Frequency Range Dual-Band: 2.4GHz (2.39–2.52GHz) & 5.8GHz (5.6–6.1GHz)
Polarization LHCP (Left-Hand Circular Polarization)
Antenna Gain 1.7dBic @ 2.4GHz | 2.8dBic @ 5.8GHz
Radiation Efficiency 99% Near-Lossless Output
VSWR / SWR ≤1.5:1 (Optimized Center Tuning)
Connector Options Available in I-PEX (U.FL), SMA, or RP-SMA
Net Weight Ultra-lightweight (Approx. 3.2g to 5.2g configuration dependent)
Ideal Applications & Use Cases
This high-performance dual-band antenna is specifically optimized for modern digital setups:
  • Digital FPV Systems: A direct upgrade or replacement for the DJI O4 Air Unit, DJI V2 Goggles, and Walksnail Avatar systems.
  • Long-Range Cinematic Drones: Perfect for mountain surfing or urban exploration where multipath interference from rocks and buildings is high.
  • Robotics & Ground UGVs: Provides consistent communication lines even when the rover is close to the dirt and obstructed by heavy terrain.
  • Compact Racing Builds: Eliminates extra pigtails and bulky mounts by combining video and telemetry reception into one micro profile.
Q: Why do I need an LHCP antenna instead of an RHCP one?
A: Neither is inherently "better," but your entire system must match. Most digital ecosystems (like the DJI Digital FPV System) utilize LHCP as their factory standard. Mixing an LHCP antenna with an RHCP antenna causes massive signal degradation and reduces your range drastically.
Q: Can this antenna handle both video transmission and radio control at the same time?
A: Yes, absolutely. It is custom-tuned to isolate and optimize the 2.4GHz band (commonly used for ELRS/Crossfire control links) and the 5.8GHz band (used for HD video transmission), avoiding interference between the two channels.
Secure Your Signal Link Today
Stop risking your expensive hardware on fragile, weak stock links. Fly further, lower, and with complete confidence.
