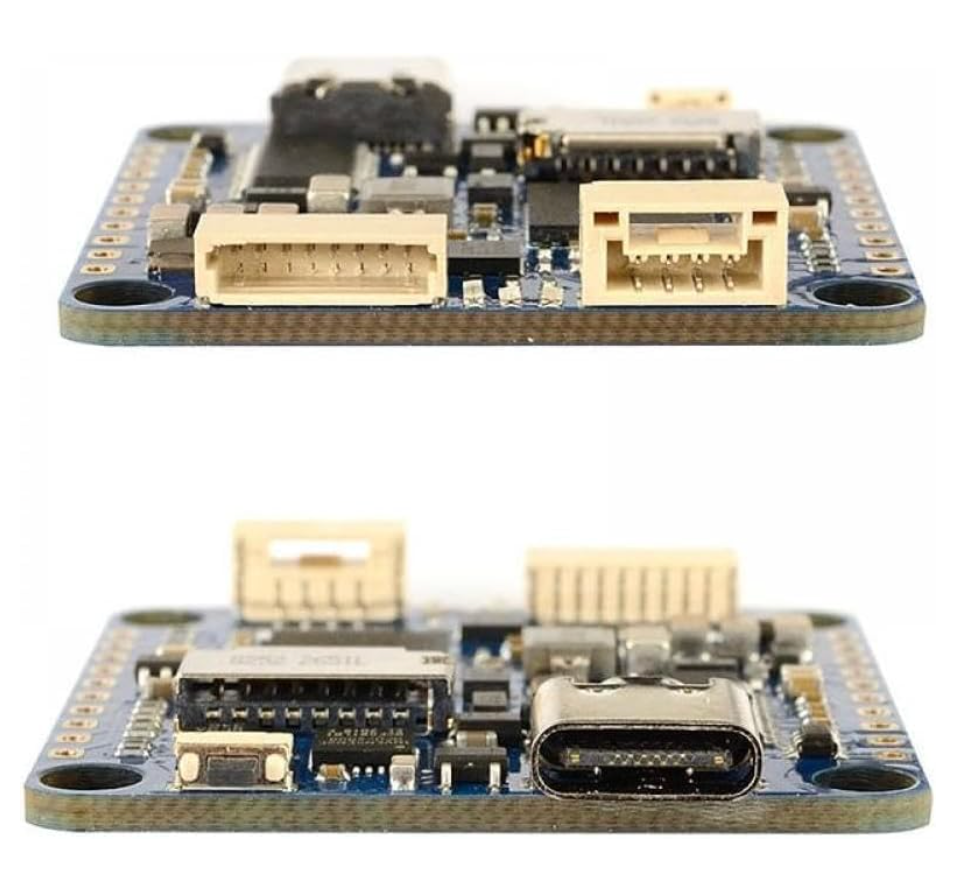

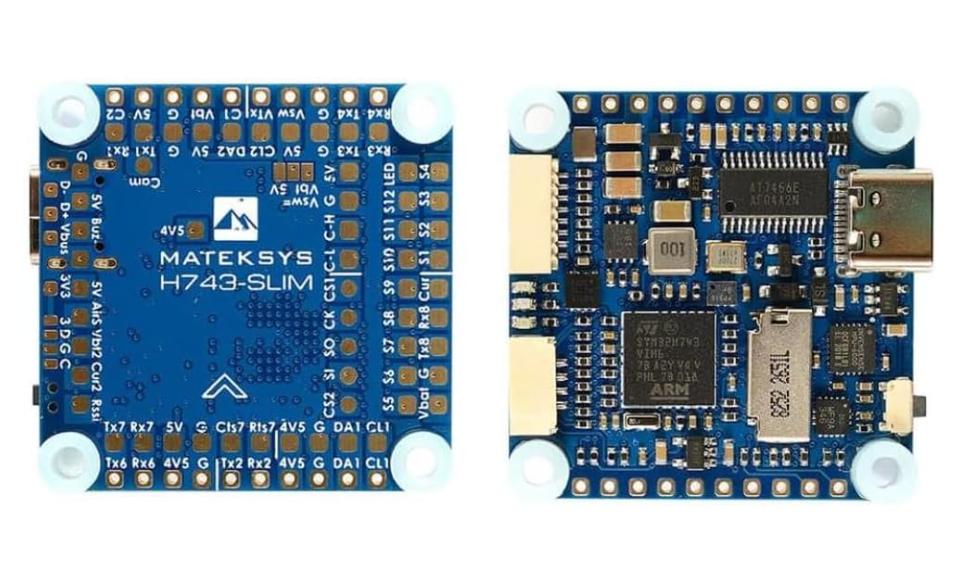

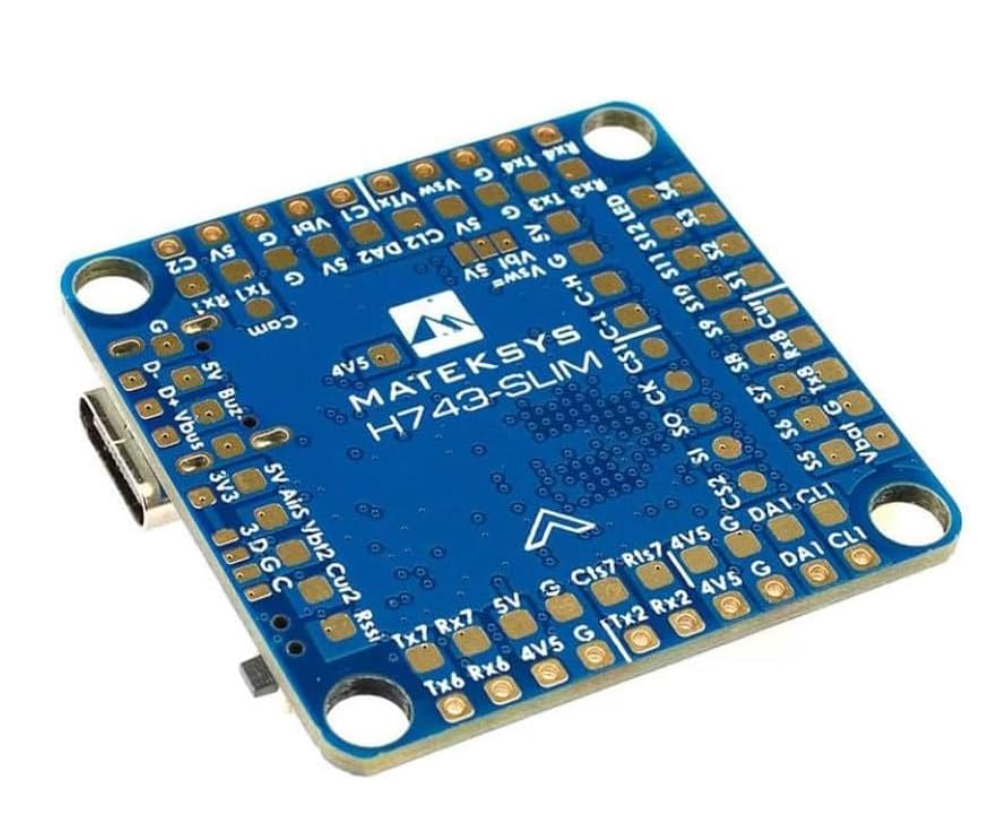

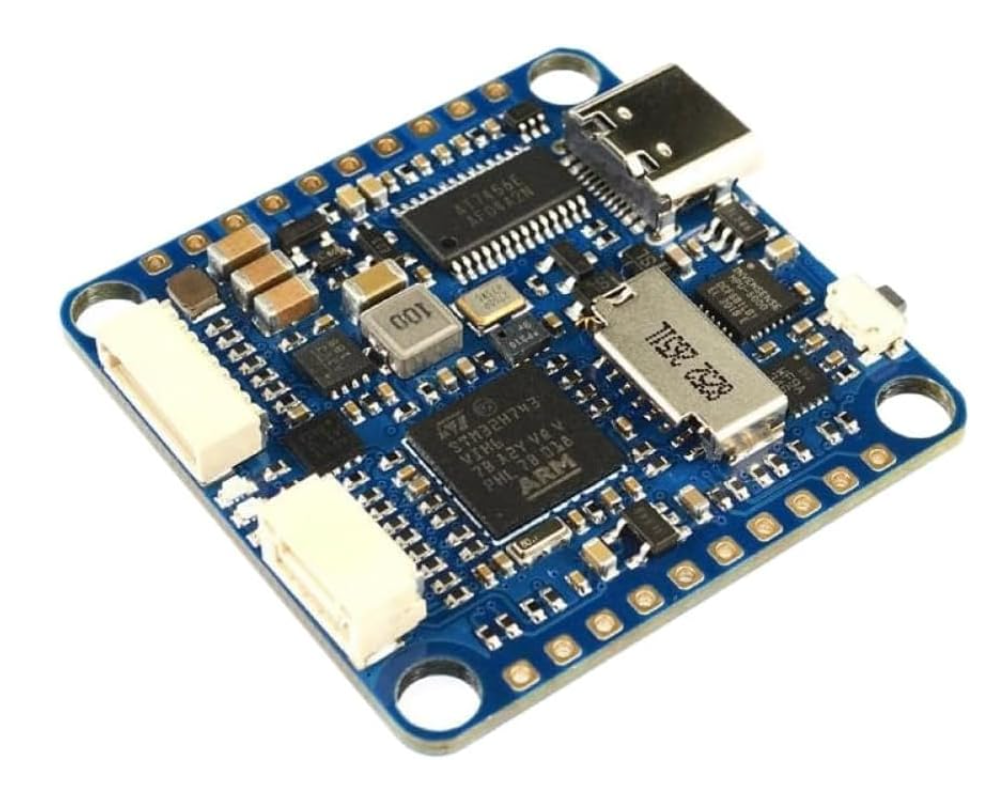

Matek H743 Slim V3 Flight Controller Compatible with FPV Drones

The Matek H743 Slim V3 is a premium, high-performance autopilot and flight controller (FC) engineered around an ultra-fast STM32H743VIT6 processor running at 480MHz. Specifically designed for modern FPV racing drones, long-range cinematic UAVs, and autonomous fixed-wing aircraft, this board acts as the central brain—processing sensor data in real-time to maintain rock-solid flight stability and execute complex navigation scripts.

What makes the V3 variant different from older generation flight controllers?

Unlike older generations that rely on slower F4 or F7 microcontrollers with limited memory, the H743 V3 features a massive 2MB of flash memory and 1MB of RAM. This massive computational overhead allows pilots to run modern firmware configurations (such as ArduPilot, Betaflight, and INAV) with all advanced features, complex filtering, and dual-gyro systems enabled simultaneously without hitting processing limits.

How does the dual-gyro layout improve flight stabilization and telemetry filtering?

The Matek H743 Slim V3 features a state-of-the-art dual IMU architecture (ICM42688P + ICM42605). By running two independent gyroscopes, the flight controller's firmware can compare sensor data in real-time, intelligently filtering out frame resonance and high-frequency motor noise. This results in incredibly clean gyro signals, smoother propwash handling, and precise control even on highly aggressive FPV platforms.

Does this flight controller include onboard data logging for blackbox tuning?

Yes, absolutely. The board features an onboard MicroSD card slot connected via a high-speed SDIO interface. This allows pilots to log comprehensive Blackbox telemetry data (such as PID loop performance, gyro noise, stick inputs, and motor outputs) during flight missions. Having access to these high-fidelity logs is essential for advanced software tuning and troubleshooting unexpected aerodynamic behaviors.
