Achieving a rock-solid position lock and pinpoint heading accuracy is vital for long-range autonomous UAVs, cinematic exploration quads, and reliable return-to-home safety features. The MicoAir MG-902 GNSS GPS & Compass Module is a professional-grade, high-performance navigation system built precisely to withstand demanding multirotor flight environments.

Driven by the advanced 9th-generation u-blox M9 (M9140) receiver engine and an integrated QMC5883L digital geomagnetic compass, the MG-902 represents one of the most powerful, low-latency, single-point navigation solutions available for modern unmanned hardware arrays.

The u-blox M9 Multi-Constellation Edge & 25Hz Refresh Rate

Older generation GPS receivers are limited by slow satellite refresh cycles and single-constellation locks, resulting in latency and telemetry drift. The MicoAir MG-902 bypasses these limitations completely:

• Concurrent 4-Star Reception: Tracks GPS, GLONASS, Galileo, and BeiDou (plus QZSS and SBAS) simultaneously. Locking onto up to 32 satellites ensures superior positional accuracy even in deep urban canyons or mountainous terrain.

• Blazing-Fast 25Hz Navigation Rate: Refreshes position data up to 25 times per second. This elite high-speed data stream delivers instantaneous position updates to your flight controller, eliminating tracking delay.

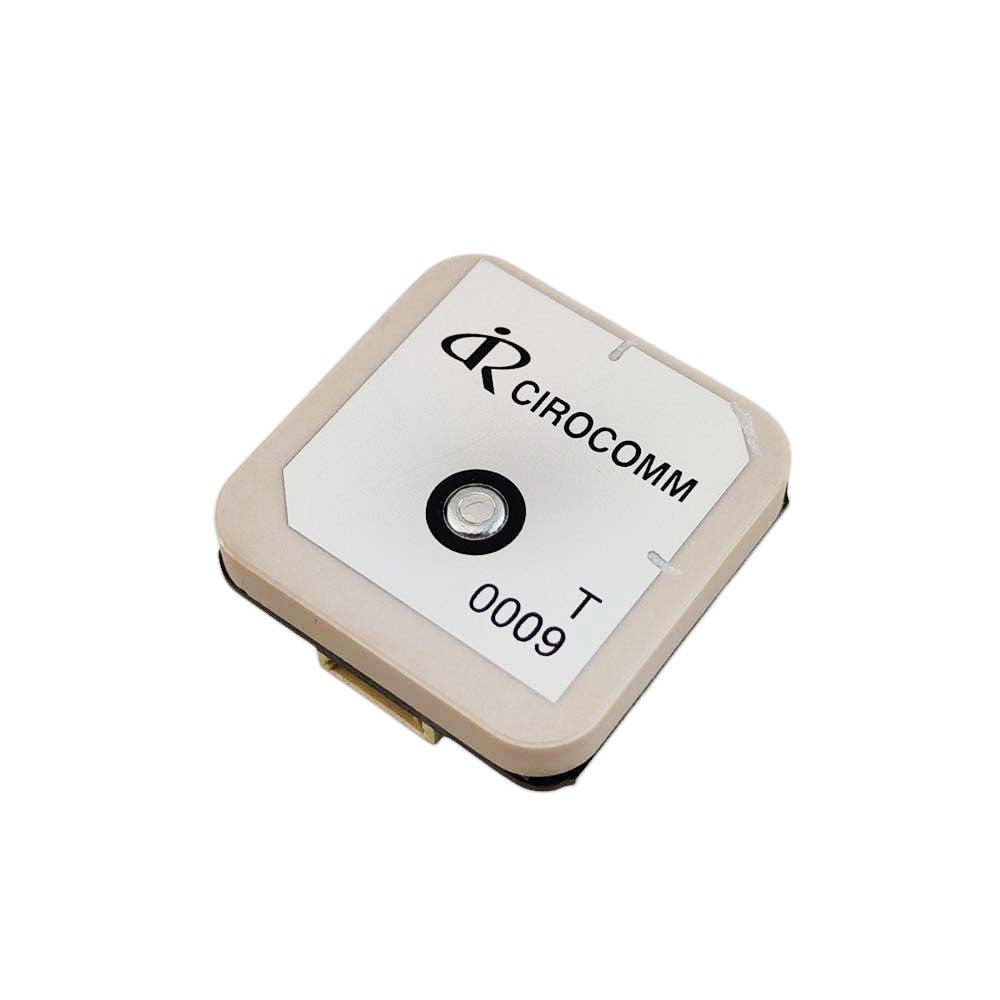

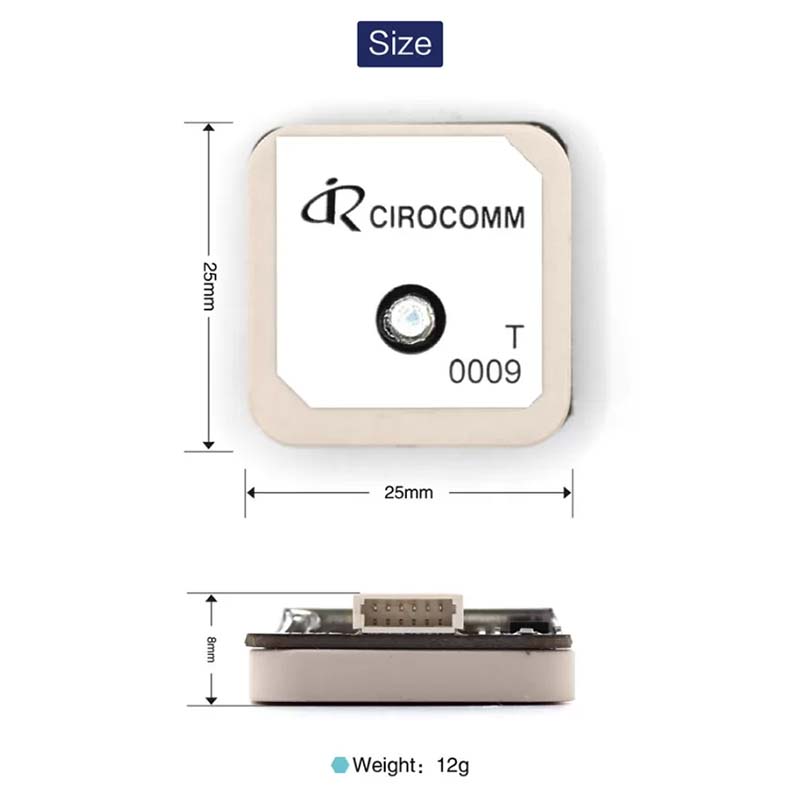

• Premium Tri-Band Ceramic Patch Antenna: Outfitted with a high-gain 25x25x4mm omnidirectional ceramic element from CIROCOMM, maximizing signal reception stability at any banking angle.

Technical Specifications

Hardware Integration & Firmware Settings

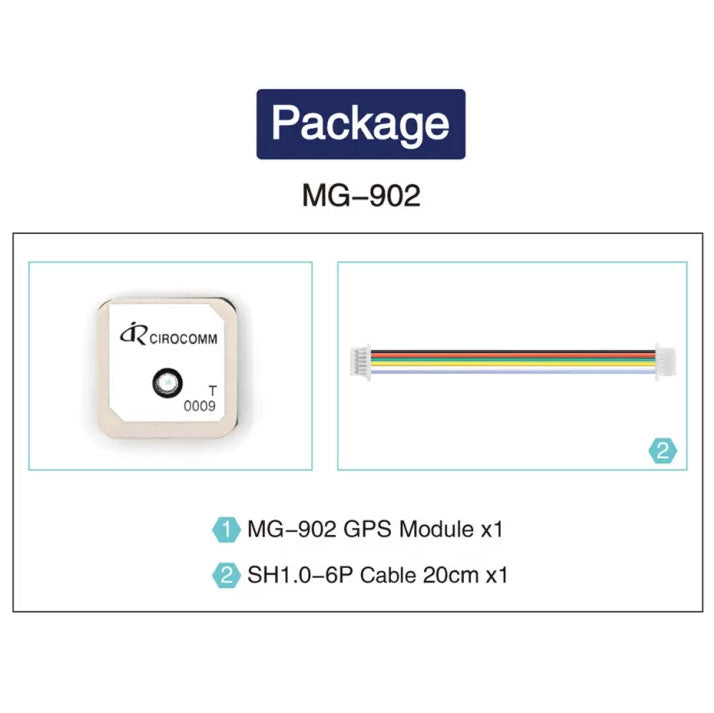

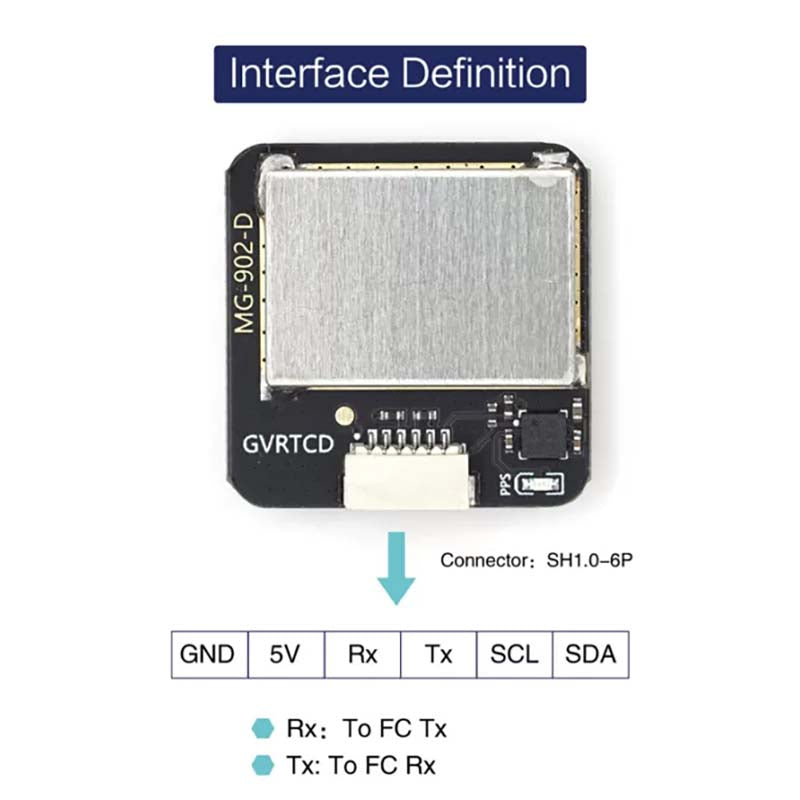

The MicoAir MG-902 comes standard with a 6-pin SH1.0 connector for straightforward wiring layout integration. To configure the system, route the TX/RX pins to an open UART on your flight controller, and jump the SDA/SCL lines to your hardware I2C bus.

The module requires the following baseline open-source software environments for full system communication:

• INAV Navigation Engine: Version 5.0.0 or higher

• Betaflight Firmware Architecture: Version 4.2.0 or higher

• ArduPilot / PX4 Enterprise Suites: Version 4.2.0 (ArduPilot) / 1.12.0 (PX4) or higher

An integrated dual-state status LED indicator provides immediate operational feedback. The blue light remains solid upon hardware startup and shifts to a rhythmic 1Hz flash once a valid 3D position lock is secured in the field.
