TBS Lucid 8S 4-in-1 ESC Mini Speed Controller
Regular price
Rs. 11,198.00
Sale price
Rs. 11,198.00
Regular price
Rs. 15,000.00
Unit price
/
per
Sale
Sold out
Shipping calculated at checkout.
Only 2 units left
Couldn't load pickup availability
Build your next high-power quadcopter with the compact TBS Lucid 8S 4-in-1 ESC. Designed for modern cinematic and freestyle drones, this unit delivers clean power to four motors from a single board. The advanced hardware configuration of the TBS Lucid 8S 4-in-1 ESC ensures fast throttle response and precise motor synchronization.
Even under heavy loads, the TBS Lucid 8S 4-in-1 ESC maintains excellent thermal efficiency to prevent overheating. Upgrade your drone stack with the reliable TBS Lucid 8S 4-in-1 ESC for a smoother and more responsive flight experience.
✨ Key Features
- 8S LiPo Capability: Supports high-voltage battery inputs up to 8S.
- 4-in-1 Integrated Board: Reduces overall weight and cleans up motor wiring.
- AM32 Motor Firmware: Features modern open-source software for smooth control.
- 20x20mm Mounting Pattern: Fits easily into tight mini drone frames.
| ESC software: | AlkaMotors32 (AM32) |
| ESC target: | tbslu8s4in1 |
| Rated current: | 60A x 4, 60 seconds |
| Peak Current: | 85A x 4, 10 seconds |
| Propellers: | Up to 11", over 7" requires good airflow |
| Input: | 3-8S Lipo |
| Protocol: | Bi-directional Dshot 300/600), KISS ESC Telemetry |
| ESC current port: | Yes |
| BEC: | No |
| Size: | 50mm*42mm |
| Mounting: | Gorilla-mount (39.5 x 16.0mm) & 30.5x30.5 mm or brackets for 20x20 mm, |
| Weight: | 17.58g, 22g incl. brackets |
What is the continuous current rating for each motor channel?
Each individual channel safely handles a continuous current rating of 60A to support power-hungry drone motors.
Each individual channel safely handles a continuous current rating of 60A to support power-hungry drone motors.
Does this speed controller include a matching wiring harness?

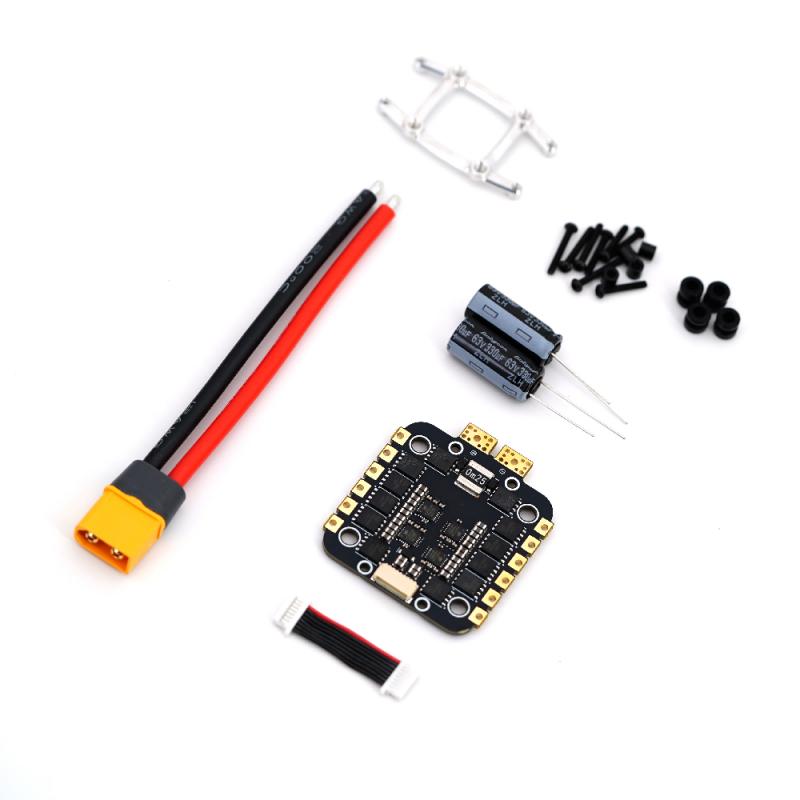

It comes with a standard connector cable to easily plug into compatible flight controllers without complex soldering.
It comes with a standard connector cable to easily plug into compatible flight controllers without complex soldering.
