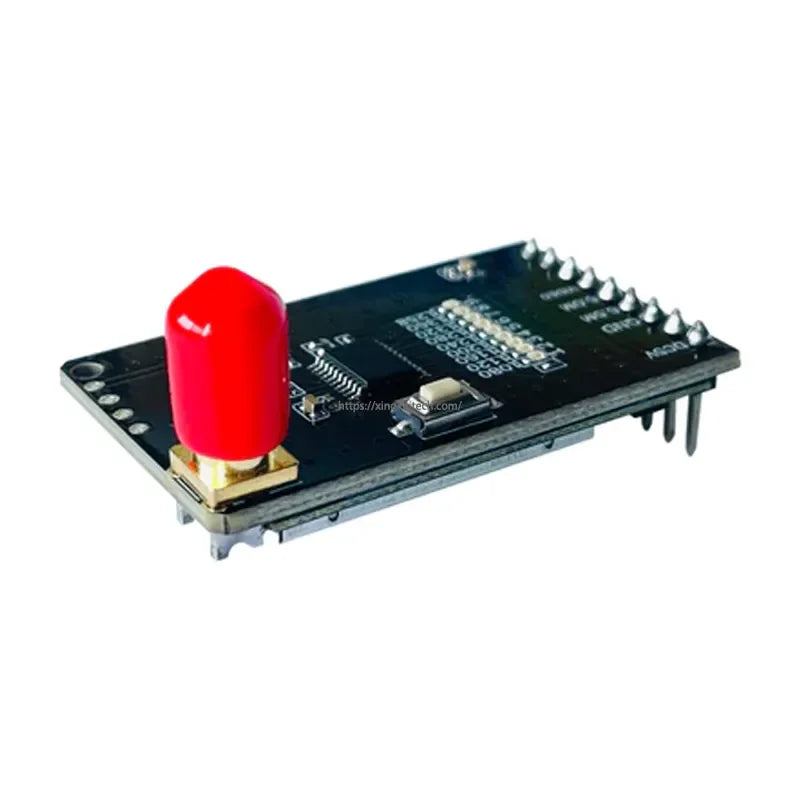

VRX-9 1.2G Analog FPV V5 Receiver Module – Long Range UAV & FPV Video Receiver

Take your long-range aerial missions to the next level with the ultra-reliable VRX-9 1.2G Analog FPV V5 Receiver Module. Engineered specifically for high-performance FPV drones, long-range UAV systems, RC planes, and custom multi-rotor applications, this Version 5 (V5) module is the definitive choice for professional pilots who demand rock-solid analog video transmission. Operating on the highly efficient 1.2GHz / 1.3GHz wide frequency band (1080MHz – 1360MHz), it penetrates obstacles with ease, providing an extended range that standard 5.8GHz systems simply cannot match.

Whether you are configuring a custom cinema rig, upgrading a heavy-lift commercial platform, or sourcing high-tier fpv drone components for extreme range, this high-sensitivity receiver ensures minimal interference and crystal-clear video reception on every single flight.

⚙️ Advanced Engineering & Upgraded V5 Performance

Built for harsh RF environments, the VRX-9 1.2G Analog FPV V5 Receiver Module features an upgraded RF front-end architecture that boosts signal stability and filtering. With an exceptional receiver sensitivity reaching down to -95 dB to -97 dBm, it locks onto faint analog signals from low-power or long-distance video transmitters without breaking a sweat.

The V5 edition introduces superior automatic gain control and voltage handling, ensuring that your live video feed remains glitch-free even during aggressive punch-outs or low-altitude flights behind thick foliage.

🛰️ 9 Selectable Channels & Plug-and-Play Integration

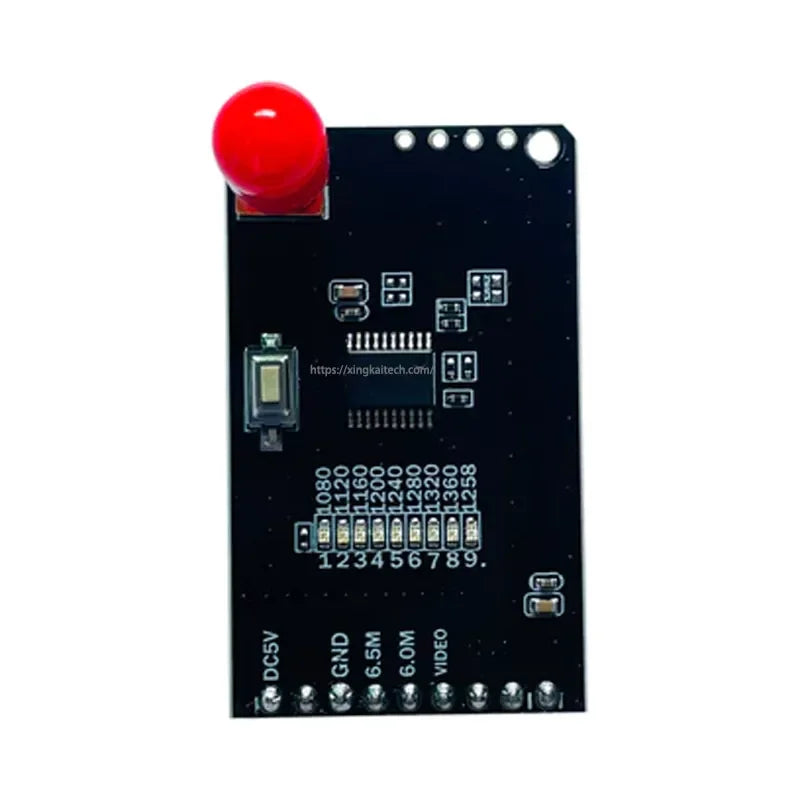

Channel congestion can turn your video feed into static snowstorms during multi-pilot operations. The VRX-9 tackles this with 9 selectable discrete channels, easily switchable via a short-press button interface. The active channel is instantly visible via 9 dedicated red LEDs on the module housing, removing any guesswork at the field.

Its universal plug-and-play architecture offers direct compatibility with popular FPV goggles featuring AV-input (such as FatShark and Skyzone) as well as standalone analog monitors or ground station arrays. Supporting both PAL and NTSC video systems, this versatile module integrates seamlessly into your existing drone hardware components layout.

🛸 Critical Component for Long-Endurance UAV & Ground Stations

In the world of custom drone development, the video receiver (VRX) is a foundational tier on your drone components list. While 5.8GHz is great for close-range racing, 1.2GHz/1.3GHz setups are essential for industrial UAV mapping, survey systems, and high-payload agriculture drone components.

This compact module slips easily into pocket setups or brackets, weighing just 20 grams with a minimal footprint ($44 \times 27 \times 27 \text{ mm}$). Powered by a stable DC 5V input, it maintains incredibly low power consumption while ensuring maximum thermal dissipation to prevent heat sag during prolonged commercial operations.

📊 Technical Specifications

• Product Model: VRX-9 Analog FPV V5 Receiver Module

• Frequency Range: 1.2GHz – 1.3GHz Wide Band (1080MHz – 1360MHz)

• Number of Channels: 9 Selectable Channels (LED Indicated)

• Receiver Sensitivity: -95 dBm to -97 dBm

• Video Format Support: PAL / NTSC (Automatic identification)

• Power Supply Input: DC 5V Optimized

• Antenna Connector Type: Standard SMA Female

• Dimensions & Weight: $44 \times 27 \times 27 \text{ mm}$ | 20 grams

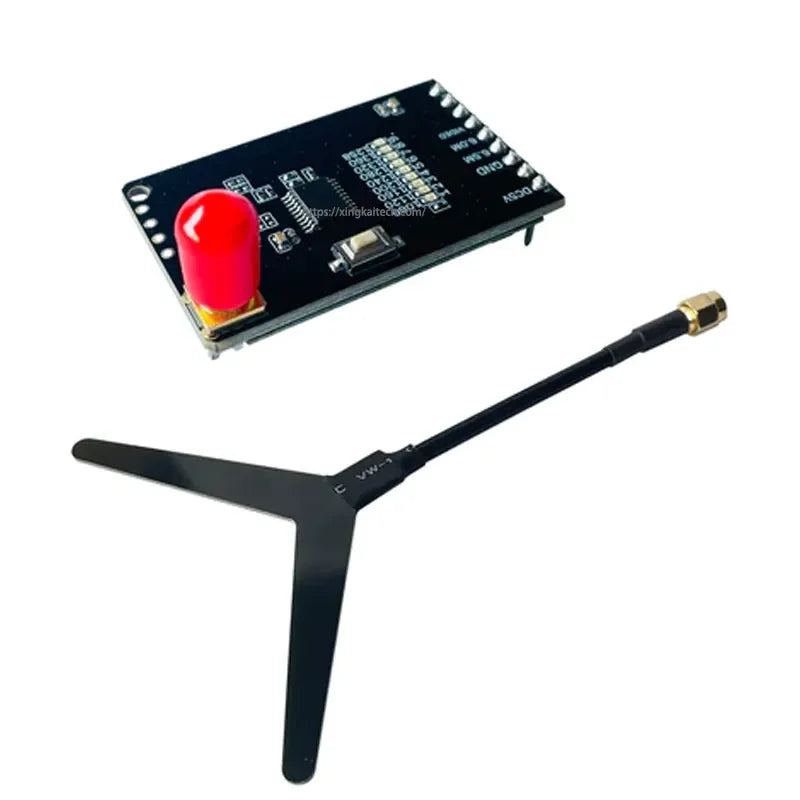

• Package Includes: 1x VRX-9 V5 Receiver, 1x Stock Antenna, 1x AV Output Cable, 1x Power Connector Cable

🚀 Why Choose the VRX-9 V5 Module from FPV Yards?

• ✅ Maximum Signal Penetration: 1.2GHz band easily cuts through trees, concrete, and long distances where 5.8GHz fails.

• ✅ Ultra-High Sensitivity: Holds solid video locks up to tens of kilometers with high-gain directional antennas.

• ✅ Low Power Footprint: Runs safely off basic 5V rails without taxing your ground station power grid.

• ✅ Trusted Indian Sourcing: Stop dealing with slow shipping and unverified international platforms; source directly from the best drone components online store in India.

Stop looking for an unverified drone components shop near me. Upgrade your long-range communication link with the ultimate components for making drone projects reliable. Buy your VRX-9 1.2G Analog FPV V5 Receiver Module from FPV Yards today and experience clear, uninterrupted analog mapping feeds!
