XH-M401 Buck Converter – DC Step Down Voltage Regulator for Drone & Electronics

When building industrial-grade UAVs, heavy-lift cinematic quadcopters, or advanced electronic workstation setups, standard low-current voltage regulators fall short. High-capacity power delivery networks require robust hardware that converts raw, high-voltage battery current into safe, stable power without overheating or throttling. The ultimate heavy-duty solution is the XH-M401 Buck Converter – DC Step Down Voltage Regulator for Drone & Electronics.

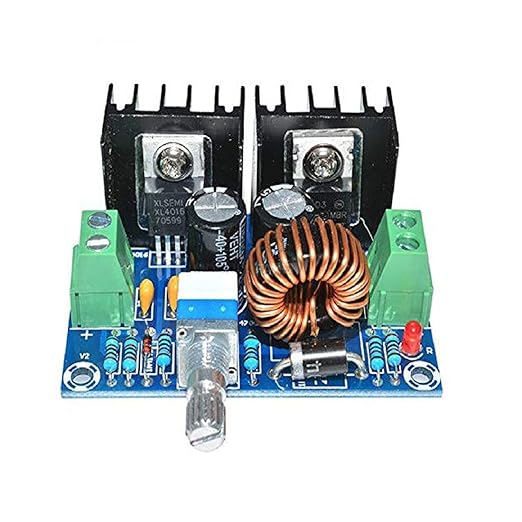

Powered by the legendary XL4016 high-power switching chip and equipped with an onboard precision potentiometer knob, this module safely tames massive input currents to distribute clean, regulated power to all your auxiliary systems. Whether you are designing a high-draw multi-rotor power distribution board (PDB), assembling a portable long-range FPV ground station briefcase, or engineering custom robotics, this premium drone part handles the heavy lifting of your electrical infrastructure.

High-Current Capacity with the XL4016 Architecture

In large-scale drone parts engineering, power efficiency and thermal limits define your system's reliability. While micro buck modules cap out at 1A or 2A, the XH-M401 XL4016E1 step-down regulator is built around a heavy-duty synchronous rectification circuit that supports a massive 8A maximum output current, with a highly stable 5A continuous rating under passive conditions.

Running at a fixed switching frequency of 180kHz, this DC-DC regulator converts power with up to 94% efficiency. Instead of converting excess voltage into dangerous waste heat like legacy linear regulators, this module processes energy dynamically. This keeps the internal temperature incredibly low and ensures that your drone or electronics grid operates at maximum capacity without wasting vital battery milliamps.

Key Hardware Features & Advantages

• Massive 8A Power Handling: Driven by the high-efficiency XL4016 switching regulator IC, ideal for high-power electronics and heavy drone sub-systems.

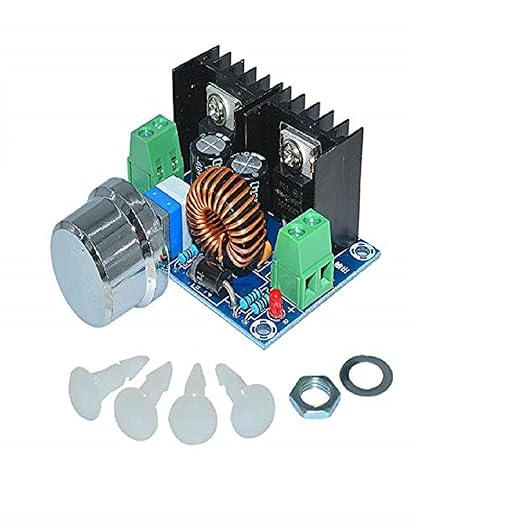

• Onboard Potentiometer with Knob: Features a rugged, tactile dial knob for effortless, real-time voltage adjustments without needing a precision screwdriver.

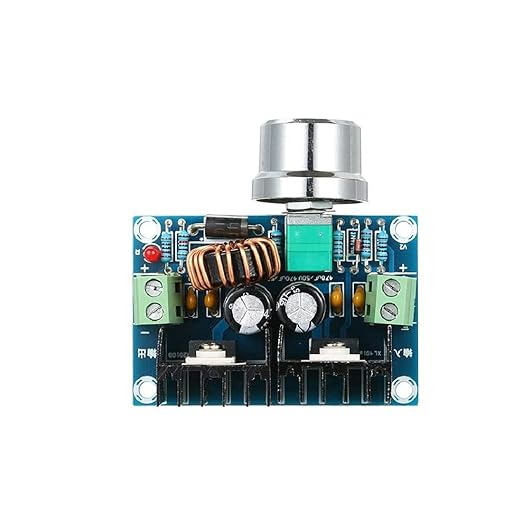

• Dual Large-Format Aluminum Heatsinks: Outfitted with pre-installed, high-surface-area cooling fins that maximize passive heat dissipation during high-amp operation.

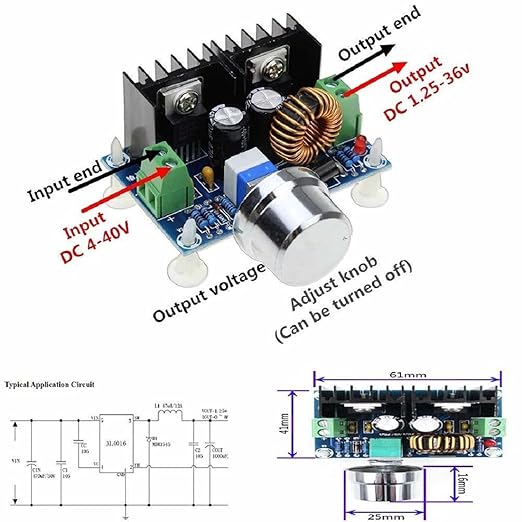

• Wide Voltage Conversion Window: Safely steps down input voltages ranging from 4V DC up to 40V DC, making it fully compatible with high-voltage 6S, 8S, and even industrial 10S LiPo battery systems.

Technical Specifications

Clean Power for Long-Range FPV Gear

High-amp brushless drone motors and electronic speed controllers (ESCs) create a chaotic electrical environment filled with massive voltage ripples. If this dirty power bleeds into your video transmission line, it results in ugly static lines and screen tearing on your FPV monitors.

The XH-M401 Buck Converter acts as an industrial-grade filter. With premium onboard high-voltage capacitors and a large-core toroid inductor, it dampens incoming electrical noise to output an ultra-smooth DC waveform. This clean power supply is exactly what high-power video transmitters (VTX), high-draw gimbal motors, and professional FPV cameras need to maintain an absolute maximum line-of-sight signal range.

Frequently Asked Questions (FAQs)

Is the XH-M401 safe for 6S and 8S LiPo drone batteries?

Absolutely. A fully charged 6S LiPo sits at 25.2V, and an 8S pack sits at 33.6V. Since this module supports up to a 40V DC input, it handles these heavy-duty drone batteries with ease.

Can I mount this directly onto my drone's carbon fiber frame?

No. Carbon fiber is highly conductive. Always use nylon standoffs or a 3D-printed TPU mounting bracket utilizing the four built-in screw holes on the board corners to prevent short circuits.

Master your power network with pro-tier precision. Add this heavy-duty XH-M401 buck converter to your cart today!
